Connector Terminal Identification
›
Engine Controls
›
Fuel Pump Relay K44
Fuel Pump Relay K44

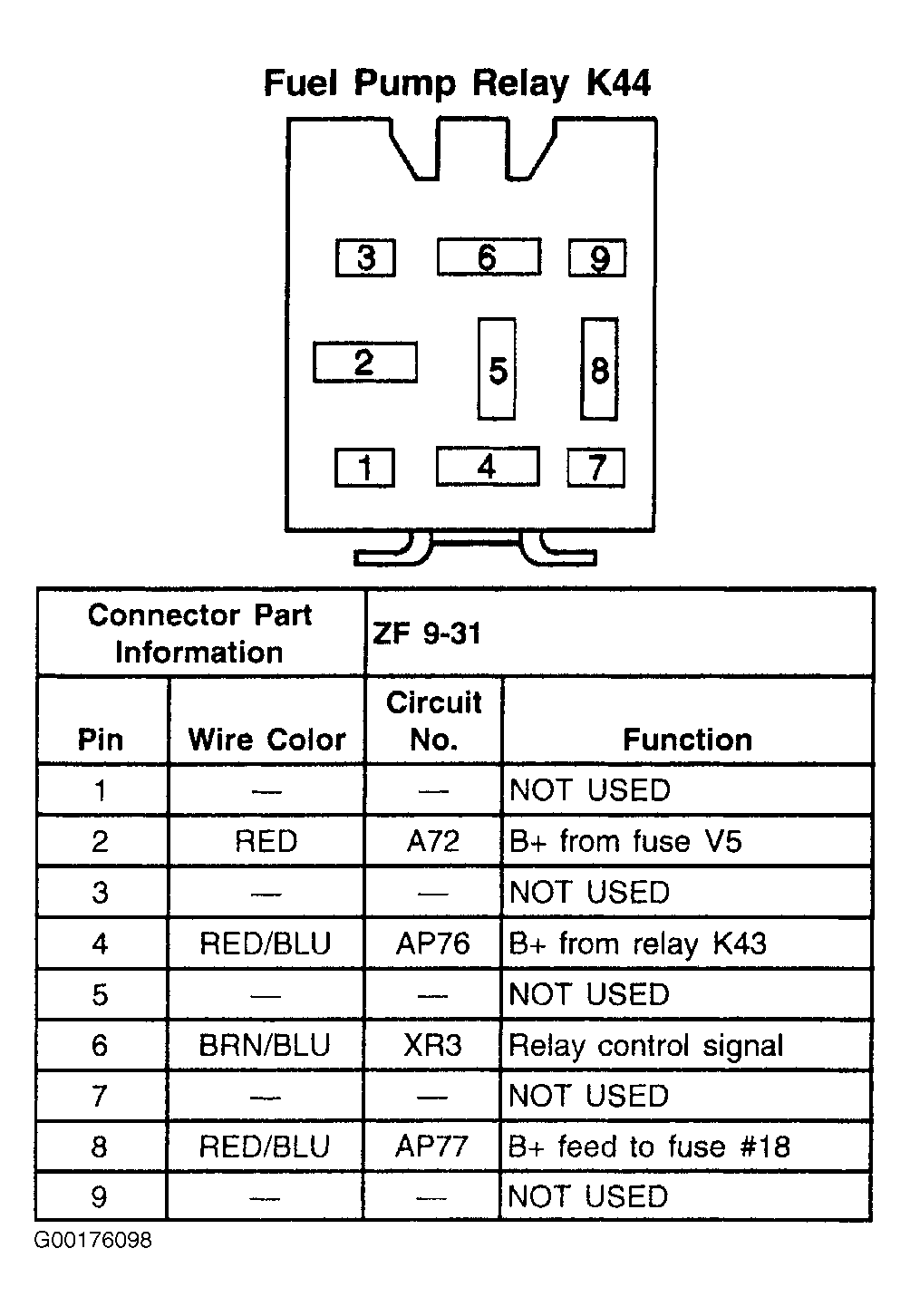

Fig 1: Fuel Pump Relay K44 - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
