Connector Terminal Identification
›
Engine Controls
›
Fuel Pump
Fuel Pump

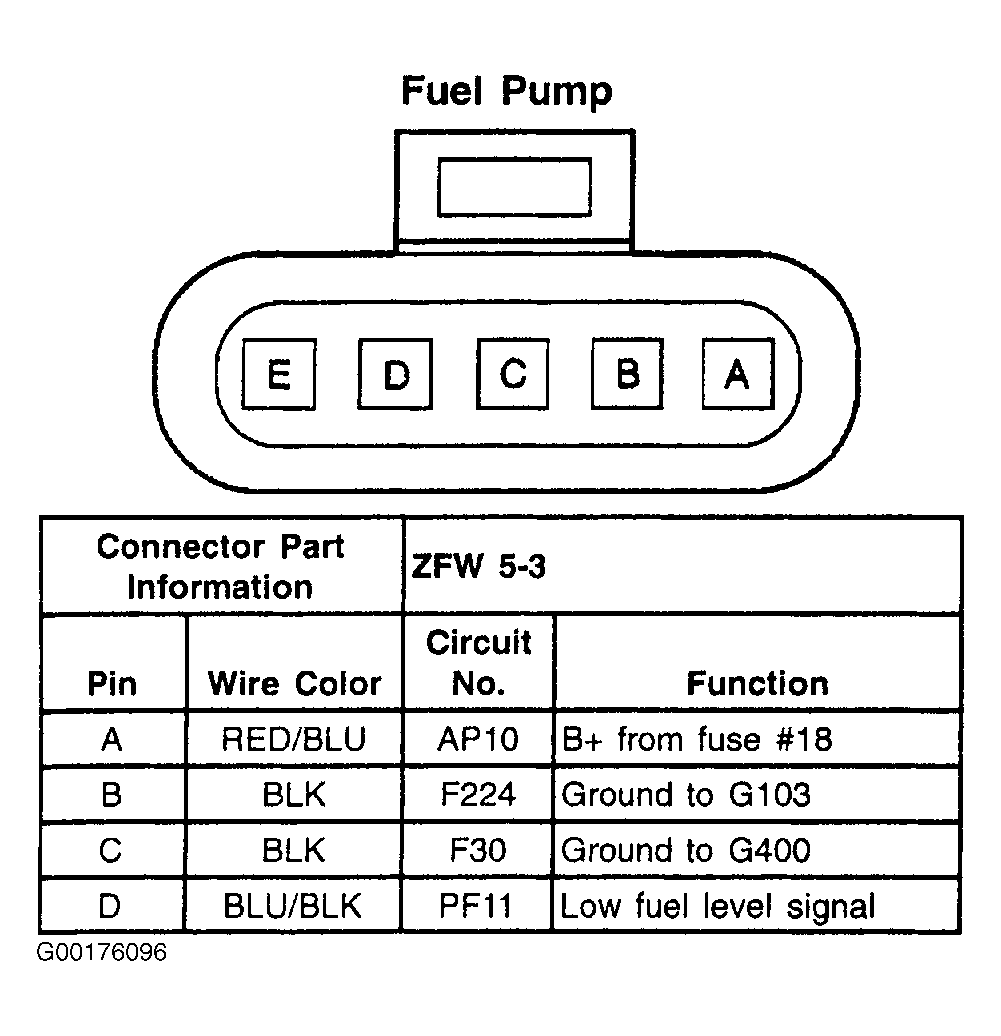

Fig 1: Fuel Pump - 5-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
