Heated Oxygen Sensor (Bank 2, Position 2)

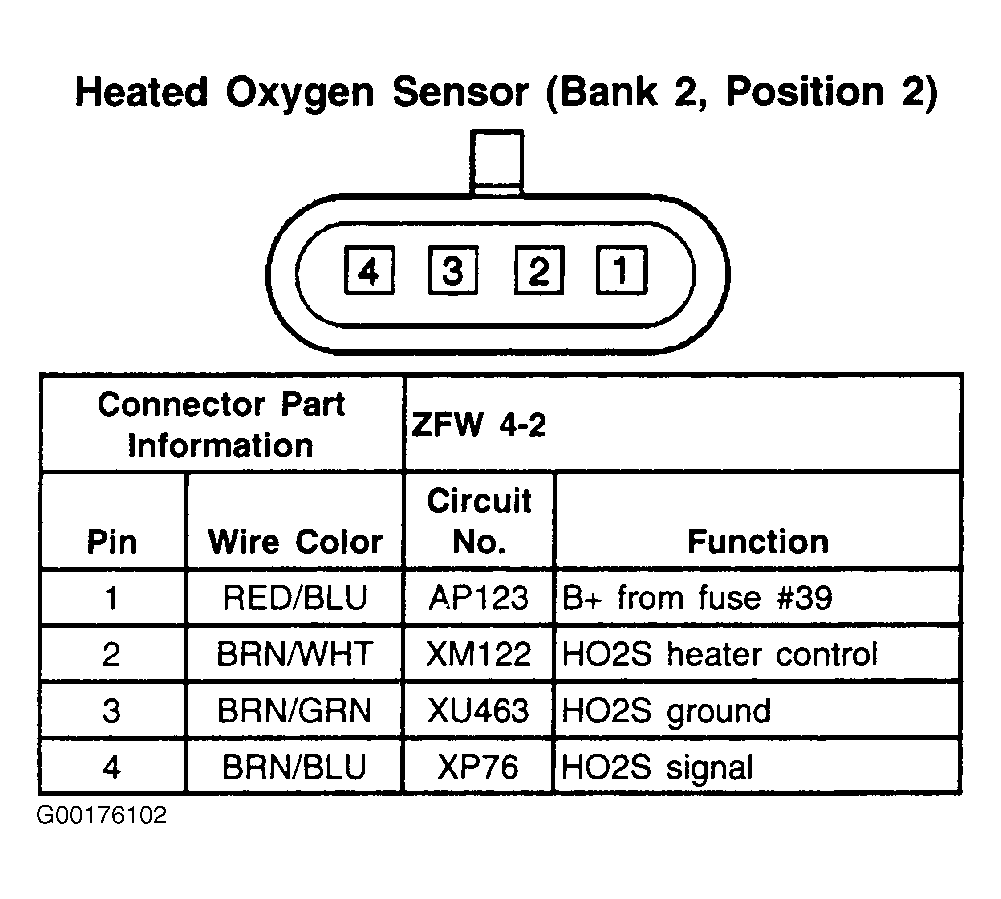

Fig 1: Heated Oxygen Sensor (Bank 2, Position 2) - 4-Pin Connector
G00176102Courtesy of GENERAL MOTORS CORP.
