Connector Terminal Identification
›
Engine Controls
›
Intake Air Temperature (IAT) Sensor
Intake Air Temperature (IAT) Sensor

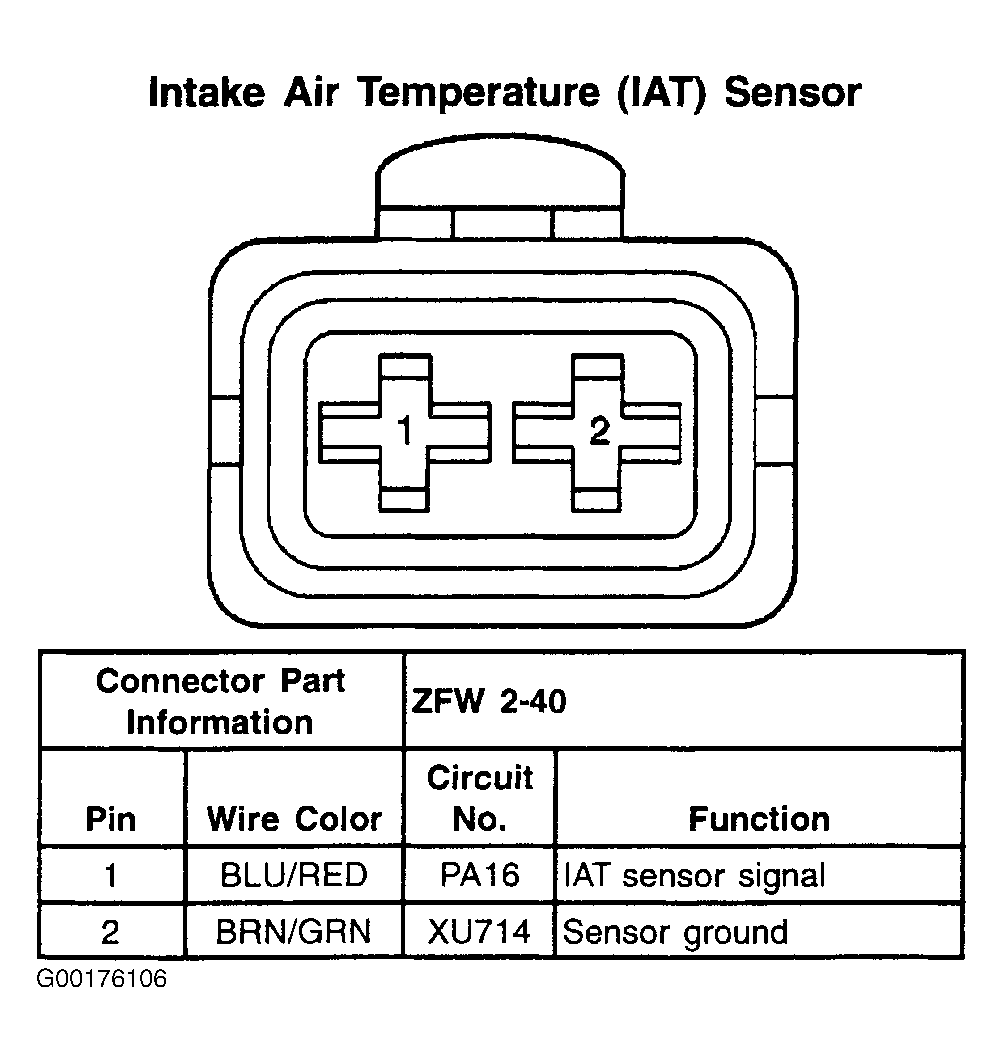

Fig 1: Intake Air Temperature (IAT) Sensor - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
