Connector Terminal Identification
›
Engine Controls
›
Intake Plenum Switch-Over Solenoid Valve
Intake Plenum Switch-Over Solenoid Valve

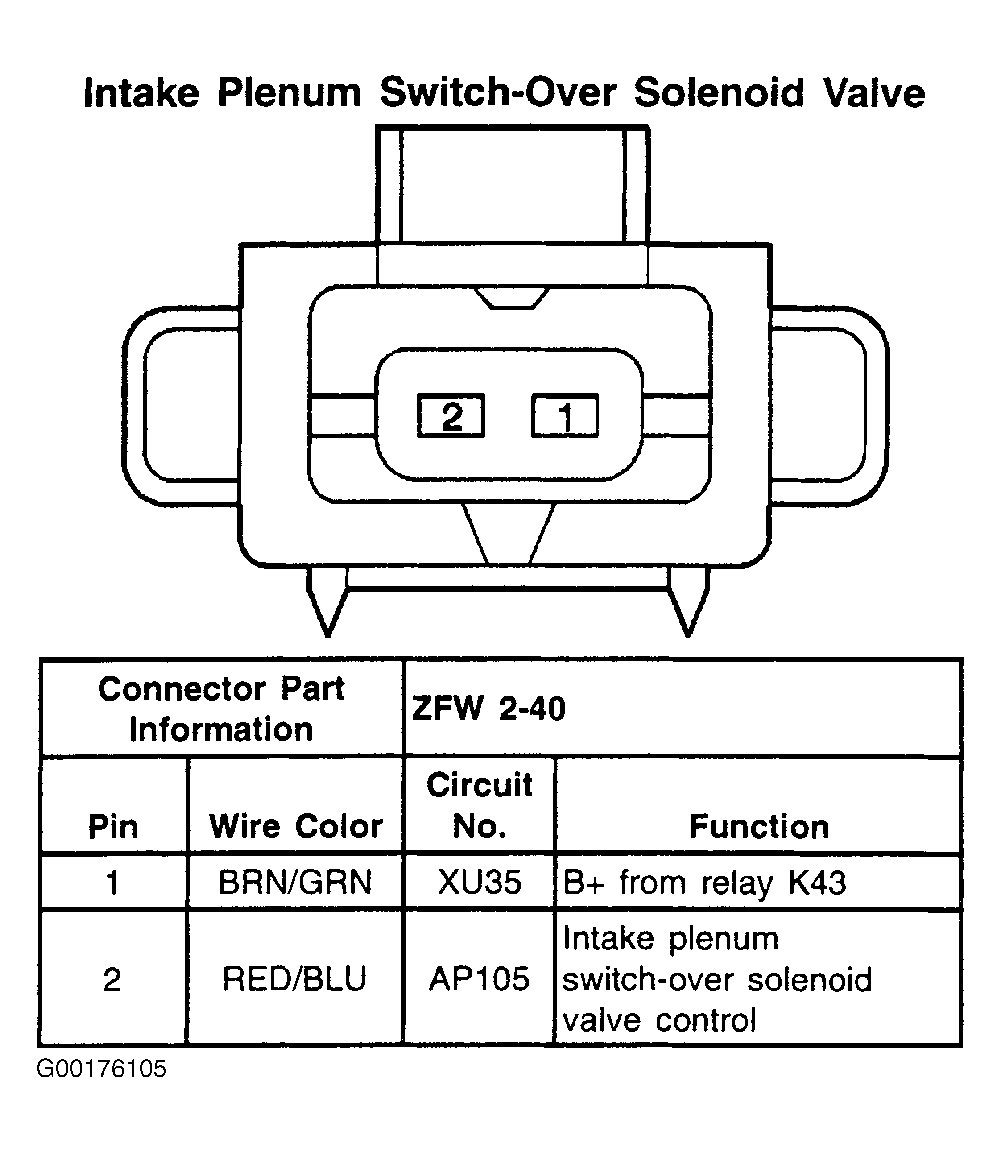

Fig 1: Intake Plenum Switch-Over Solenoid Valve - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
