Knock Sensor (Bank 2)
Knock Sensor (Bank 2)

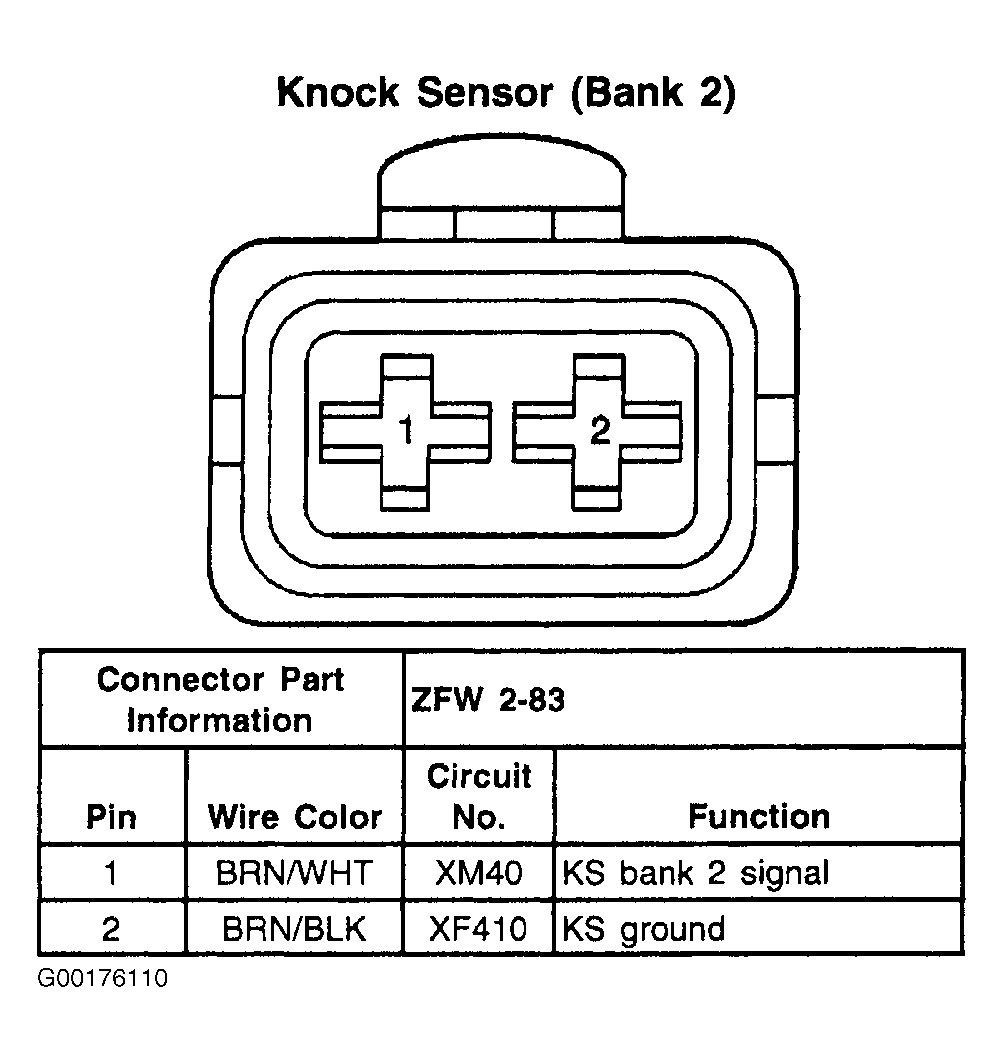

Fig 1: Knock Sensor (Bank 2) - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
