Connector Terminal Identification
›
Engine Controls
›
Mass Air Flow (MAF) Sensor
Mass Air Flow (MAF) Sensor

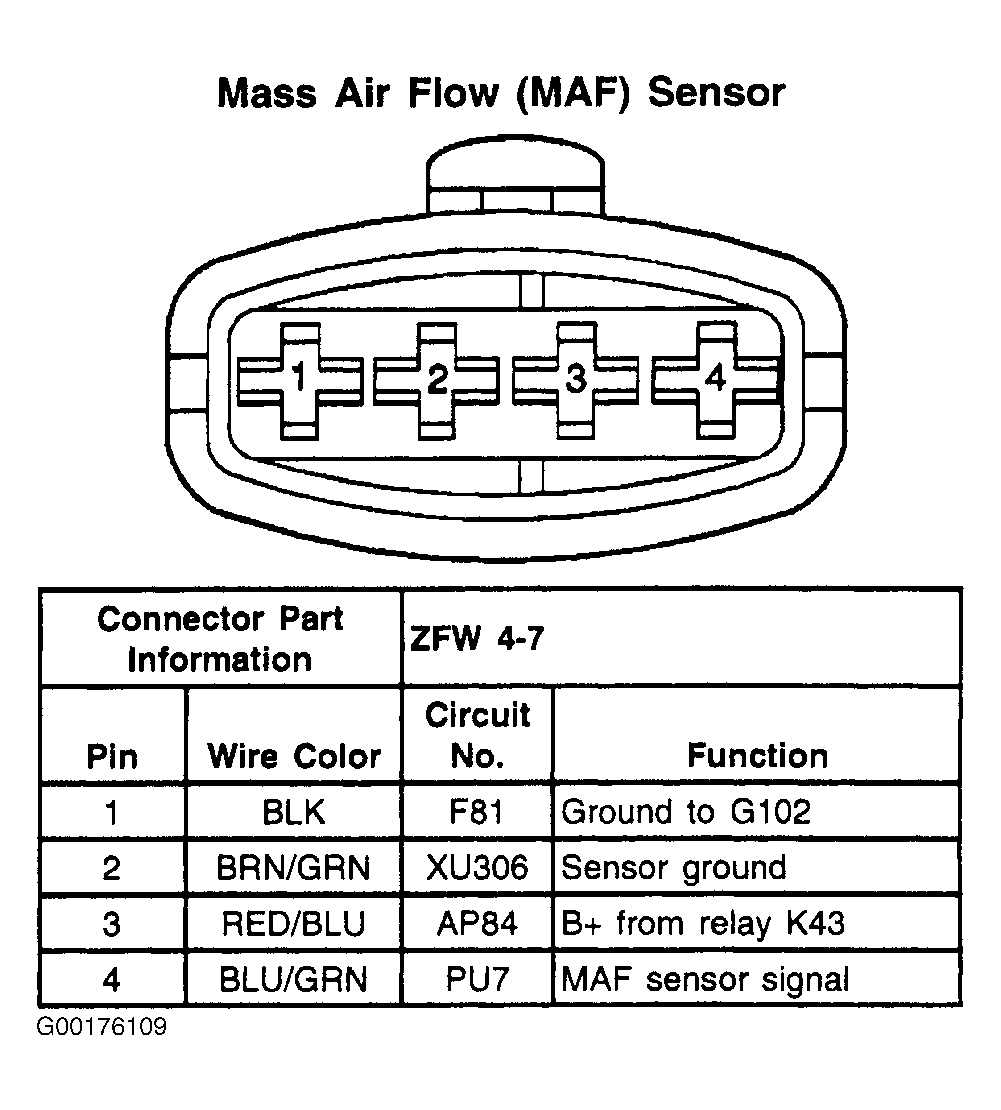

Fig 1: Mass Air Flow (MAF) Sensor - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
