Secondary Air Injection Pump Solenoid Valve

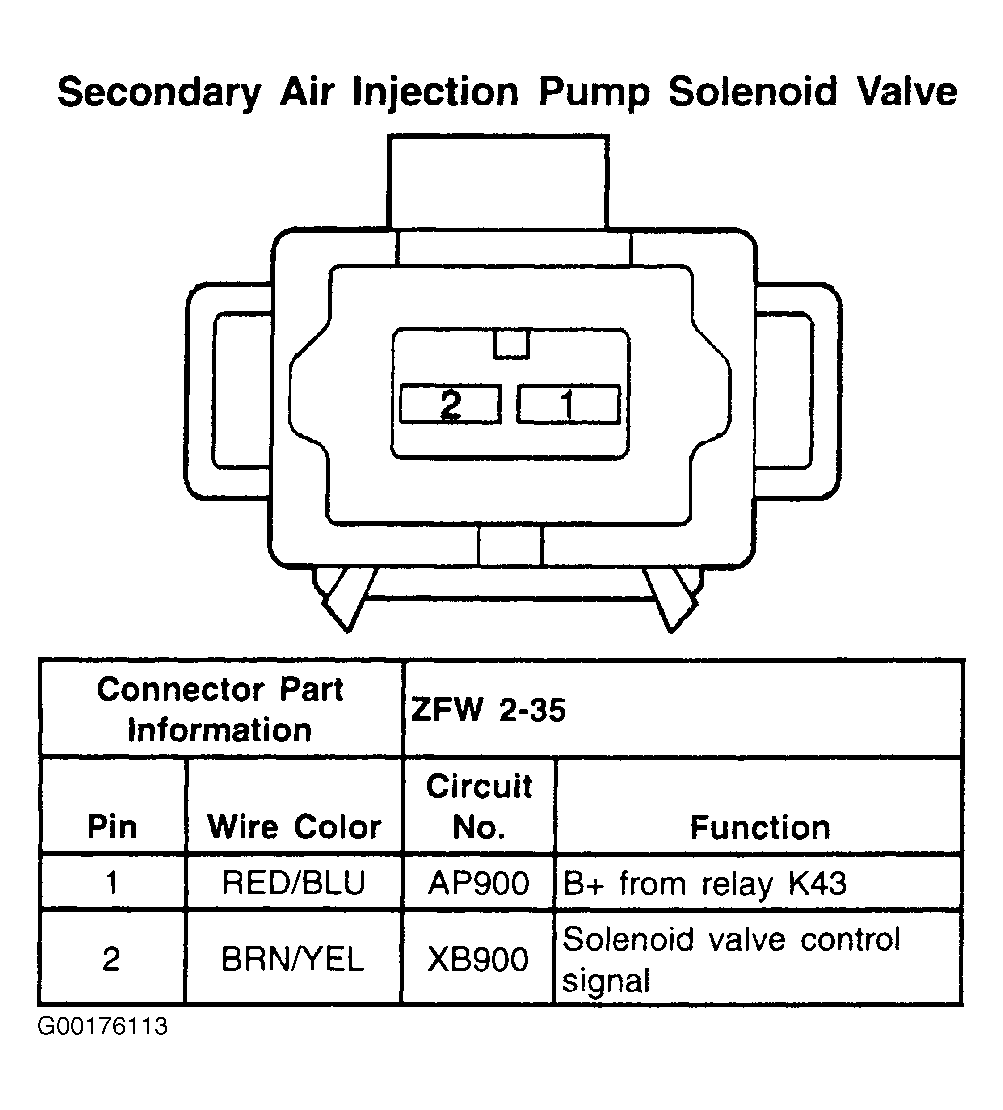

Fig 1: Secondary Air Injection Pump Solenoid Valve - 2-Pin Connector
G00176113Courtesy of GENERAL MOTORS CORP.
