Throttle Position Sensor

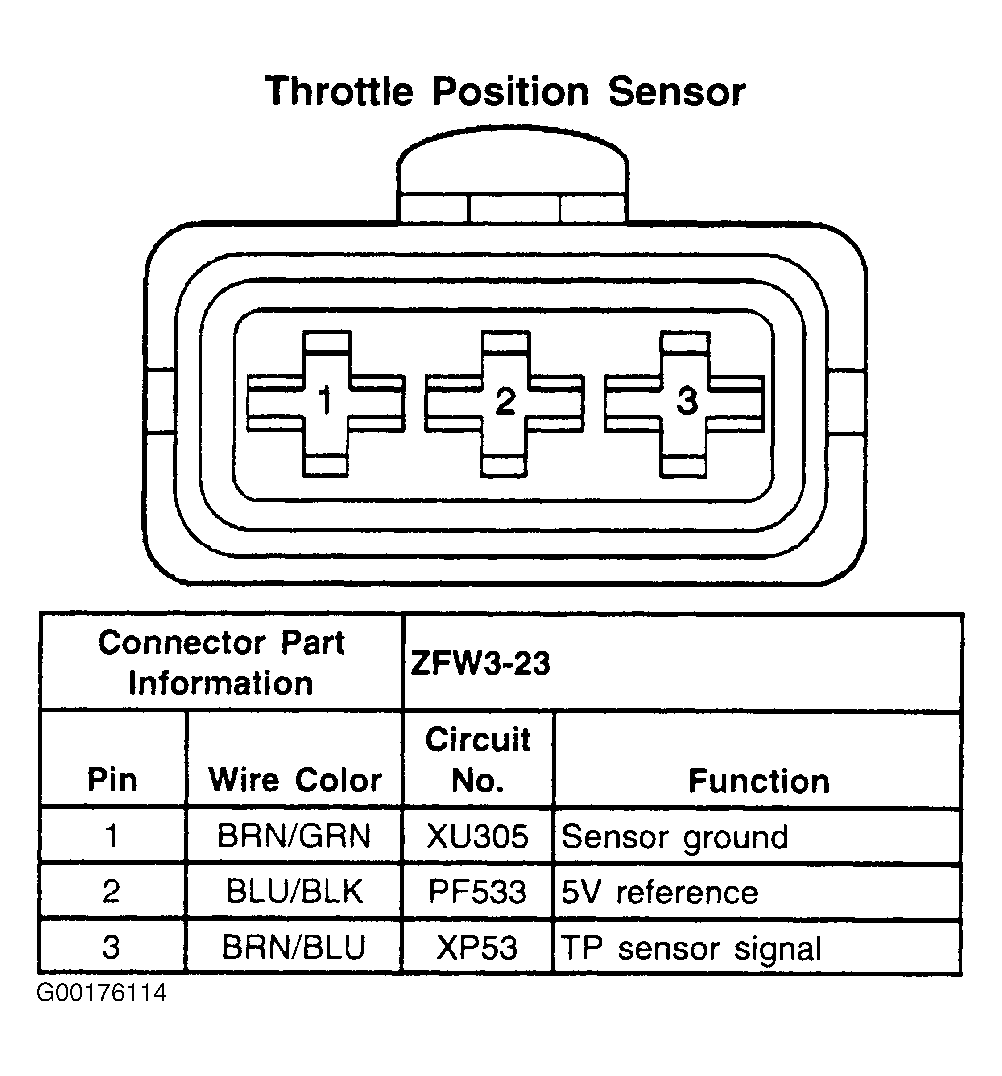

Fig 1: Throttle Position Sensor - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
