Primary Cooling Fan Temperature Switch

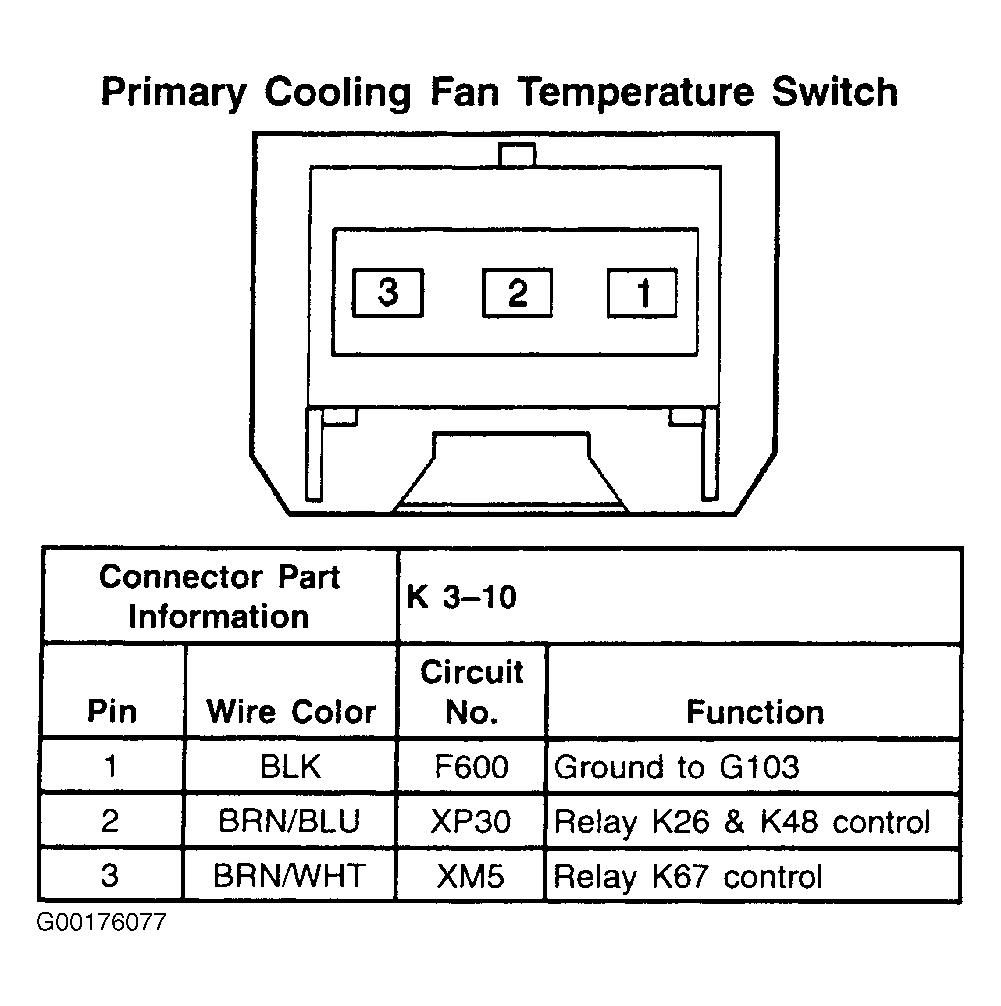

Fig 1: Primary Cooling Fan Temperature Switch - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
