Connector Terminal Identification
›
Engine Cooling
›
Water Auxiliary Pump
Water Auxiliary Pump

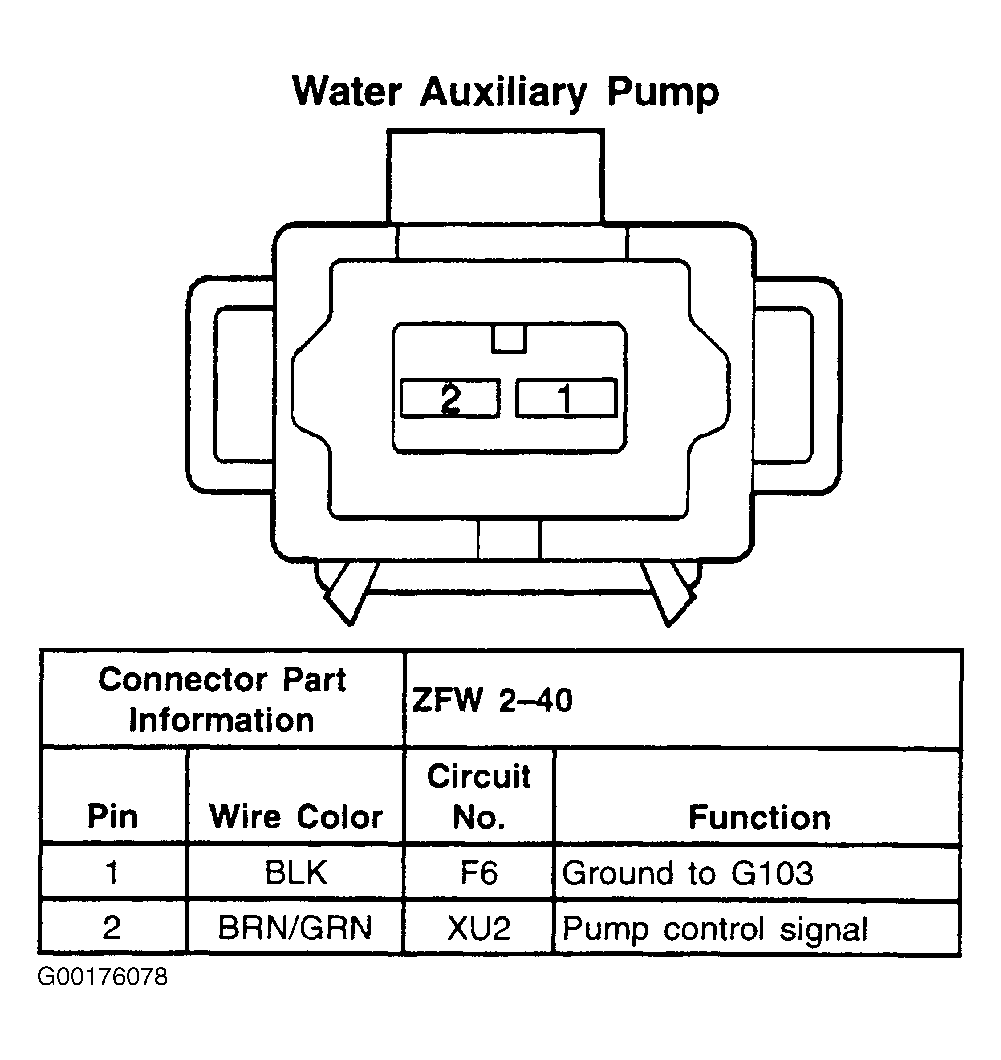

Fig 1: Water Auxiliary Pump - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
