Cellular Telephone (BOSE System)
Cellular Telephone (BOSE System)

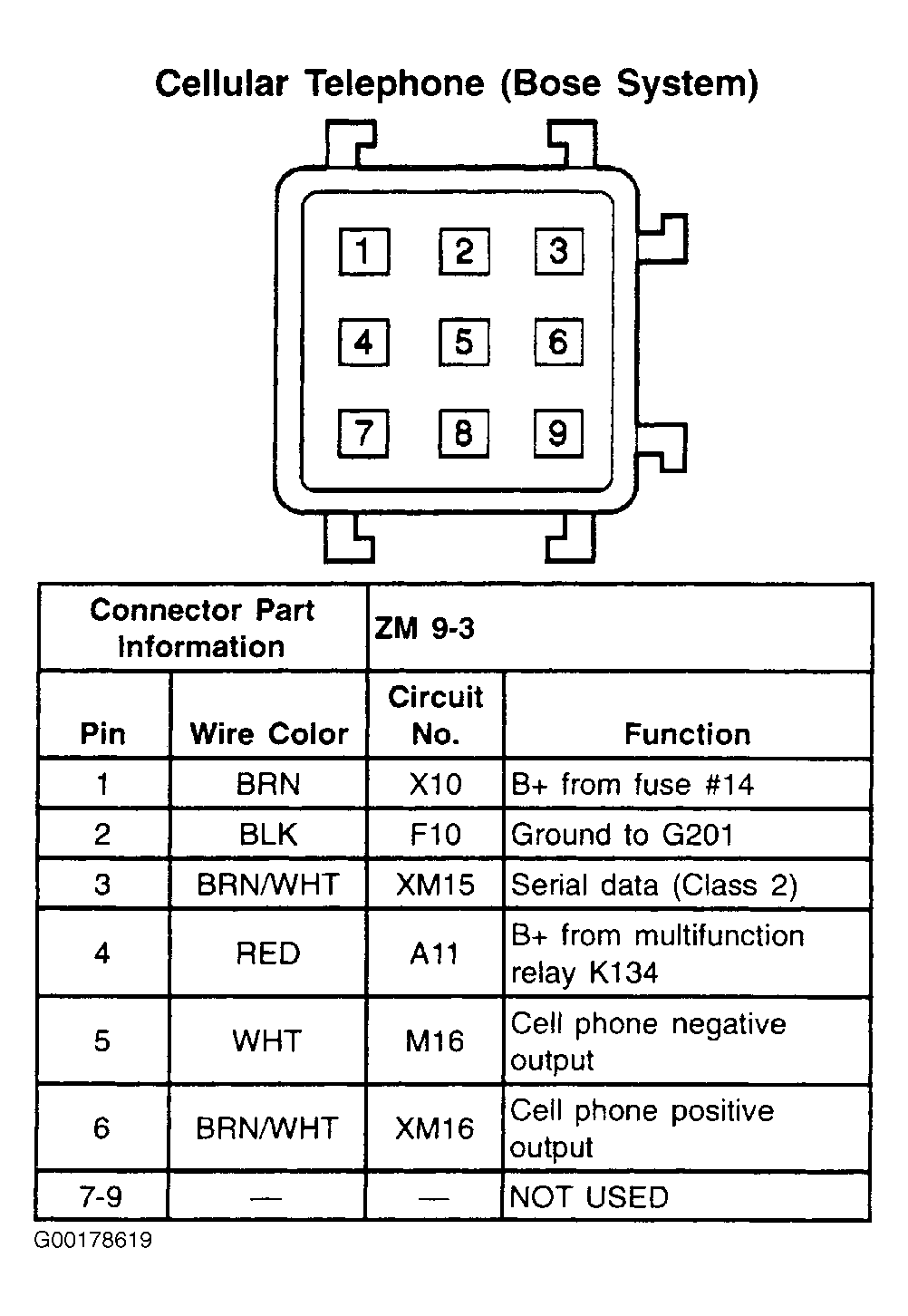

Fig 1: Cellular Telephone (Bose System) - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
