Compact Disk Changer (Base System)

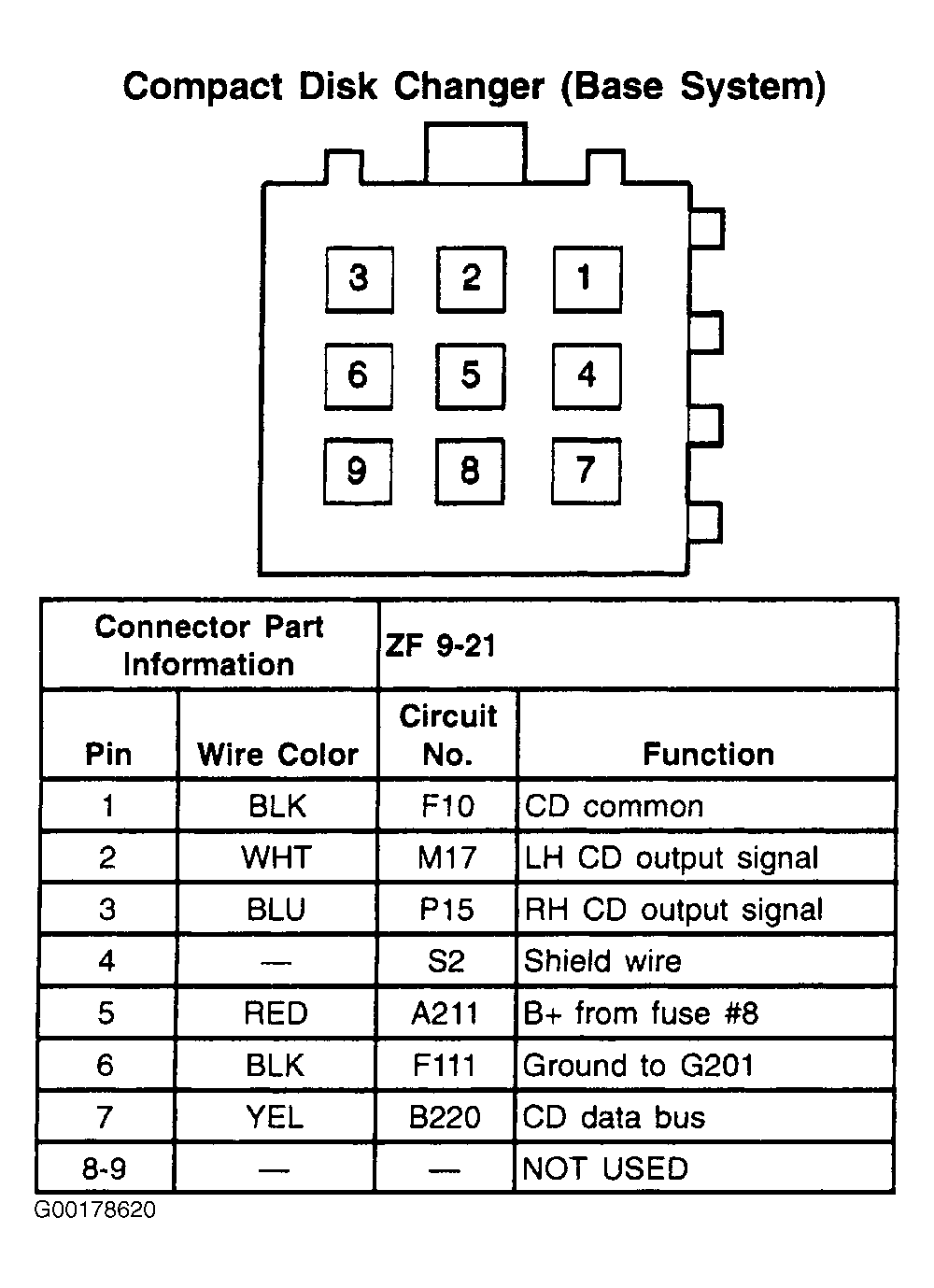

Fig 1: Compact Disk Changer (Base System) - 9-Pin Connector
G00178620Courtesy of GENERAL MOTORS CORP.
