Connector Terminal Identification
›
HVAC Connectors
›
A/C Load Switch
A/C Load Switch

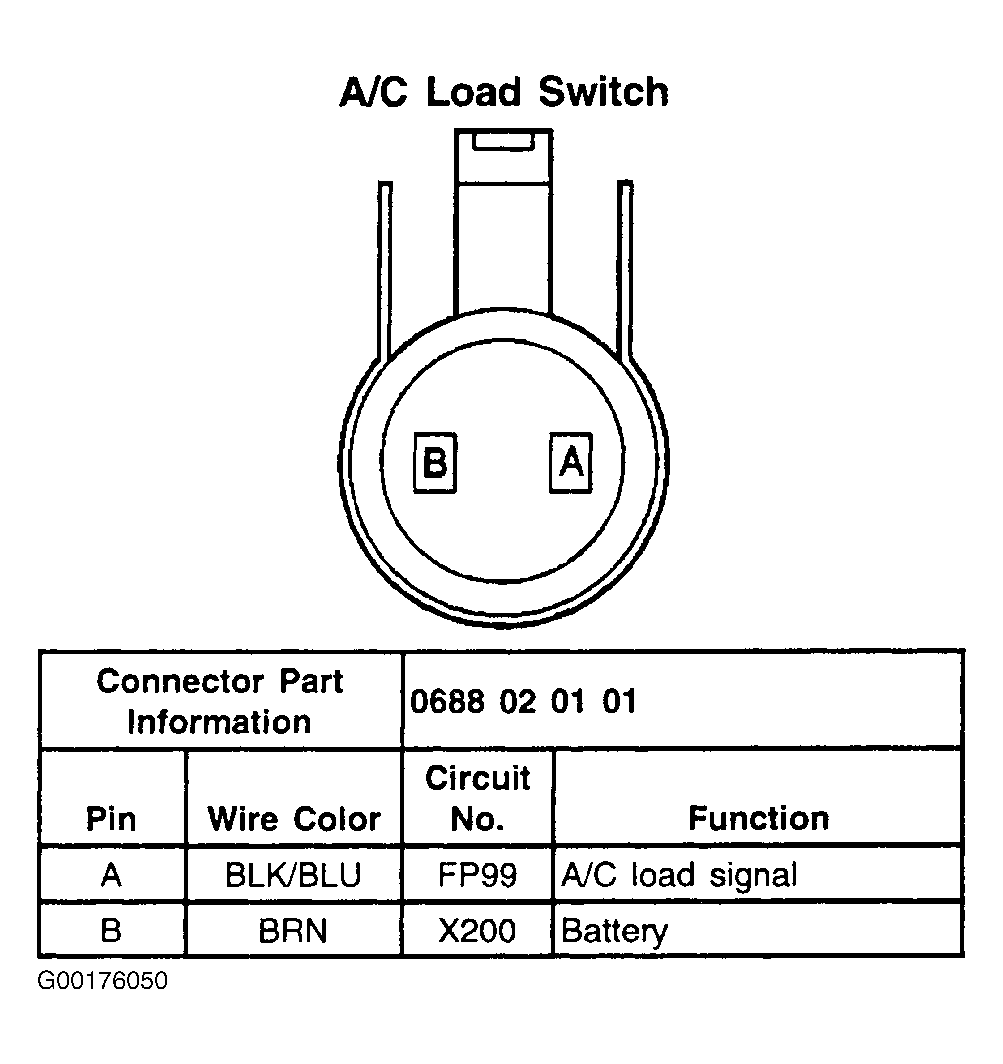

Fig 1: A/C Load Switch - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
