Blower Controller
Blower Controller

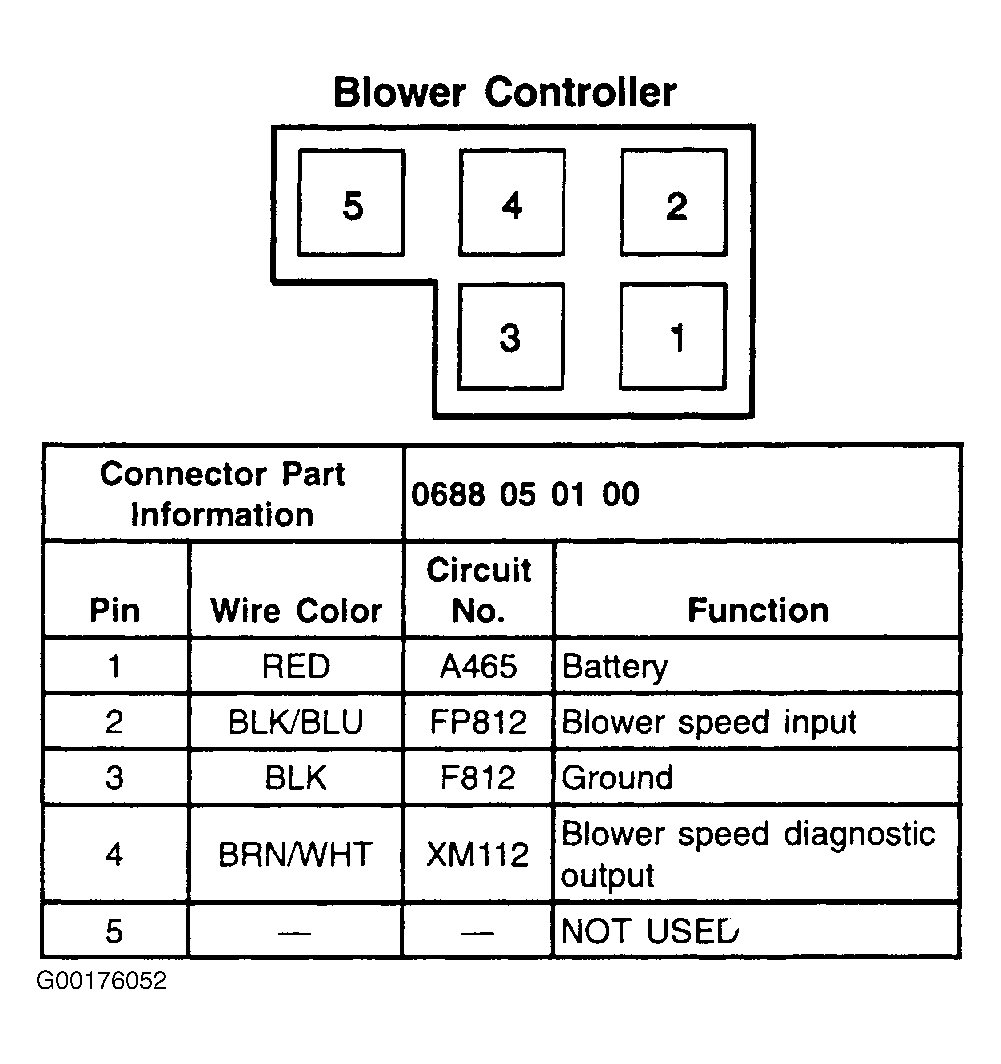

Fig 1: Blower Controller - 5-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
