Defroster Valve Actuator
Defroster Valve Actuator

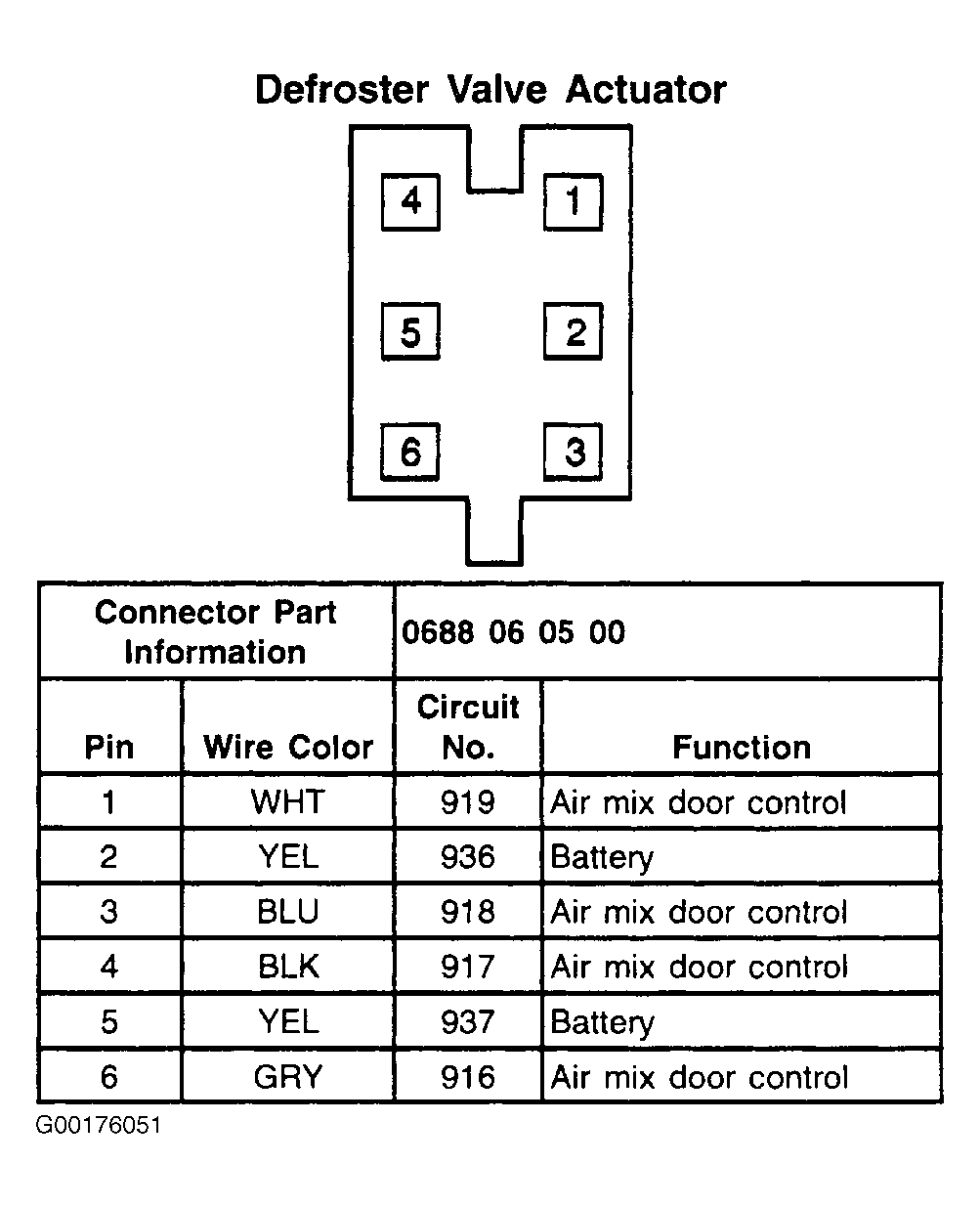

Fig 1: Defroster Valve Actuator - 6-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
