Connector Terminal Identification
›
Horns
›
Horn No. 1
Horn No. 1

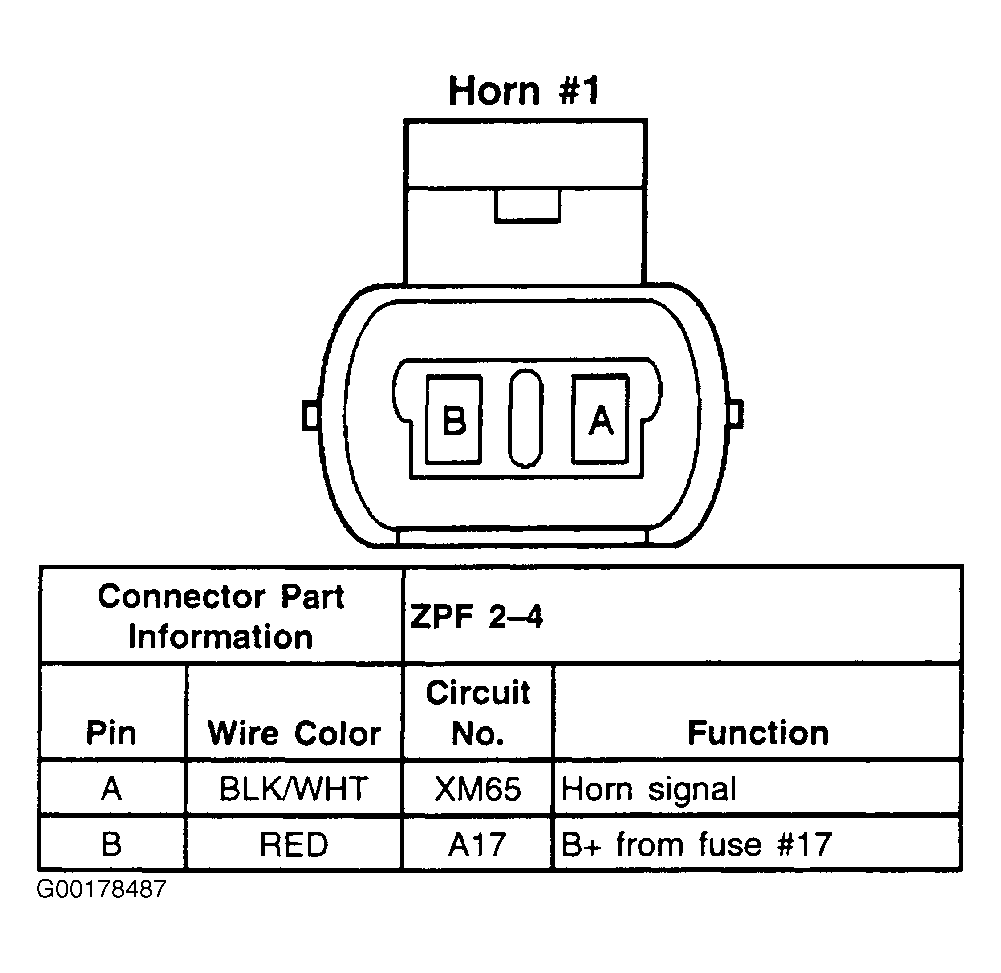

Fig 1: Horn No. 1 - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
