Connector Terminal Identification
›
Instrument Panel, Gauges & Console
›
Cooling Fluid Minimum Capacity Sensor
Cooling Fluid Minimum Capacity Sensor

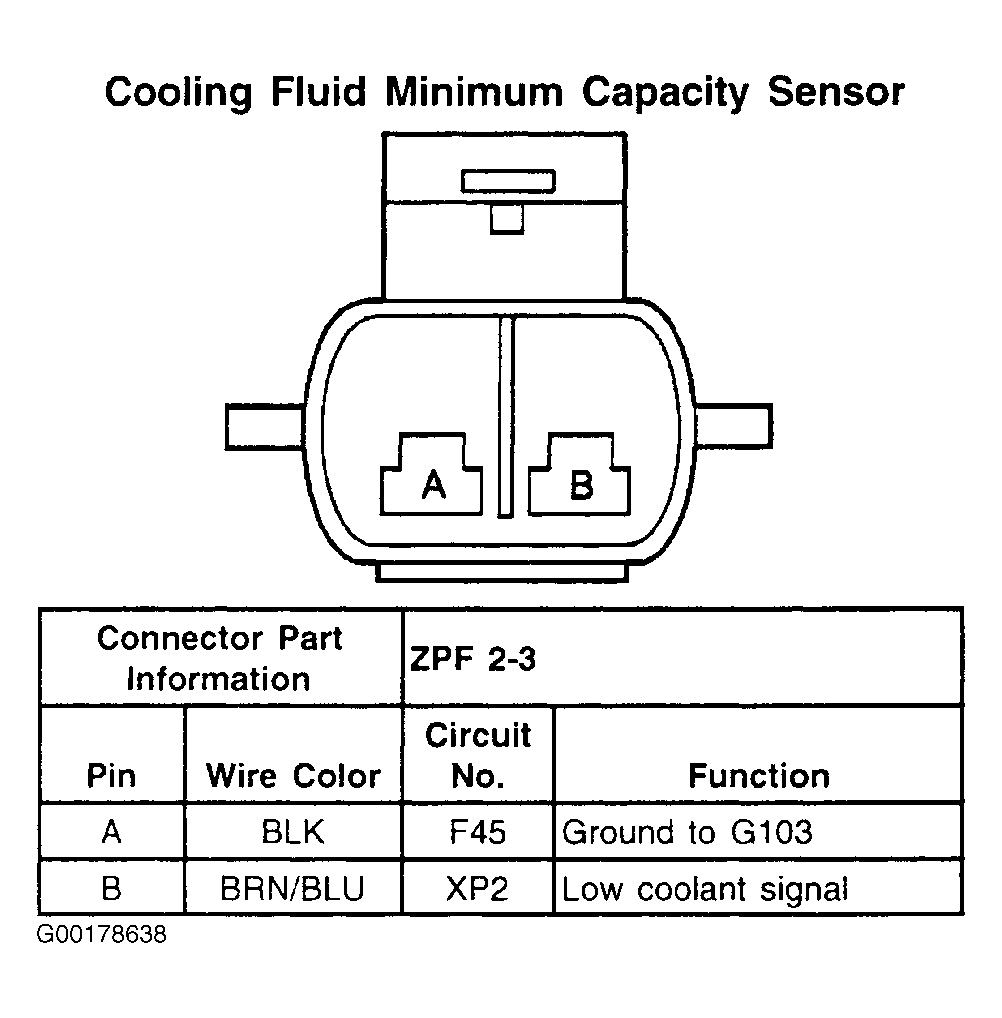

Fig 1: Cooling Fluid Minimum Capacity Sensor - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
