Connector Terminal Identification
›
Instrument Panel, Gauges & Console
›
Instrument Cluster
Instrument Cluster

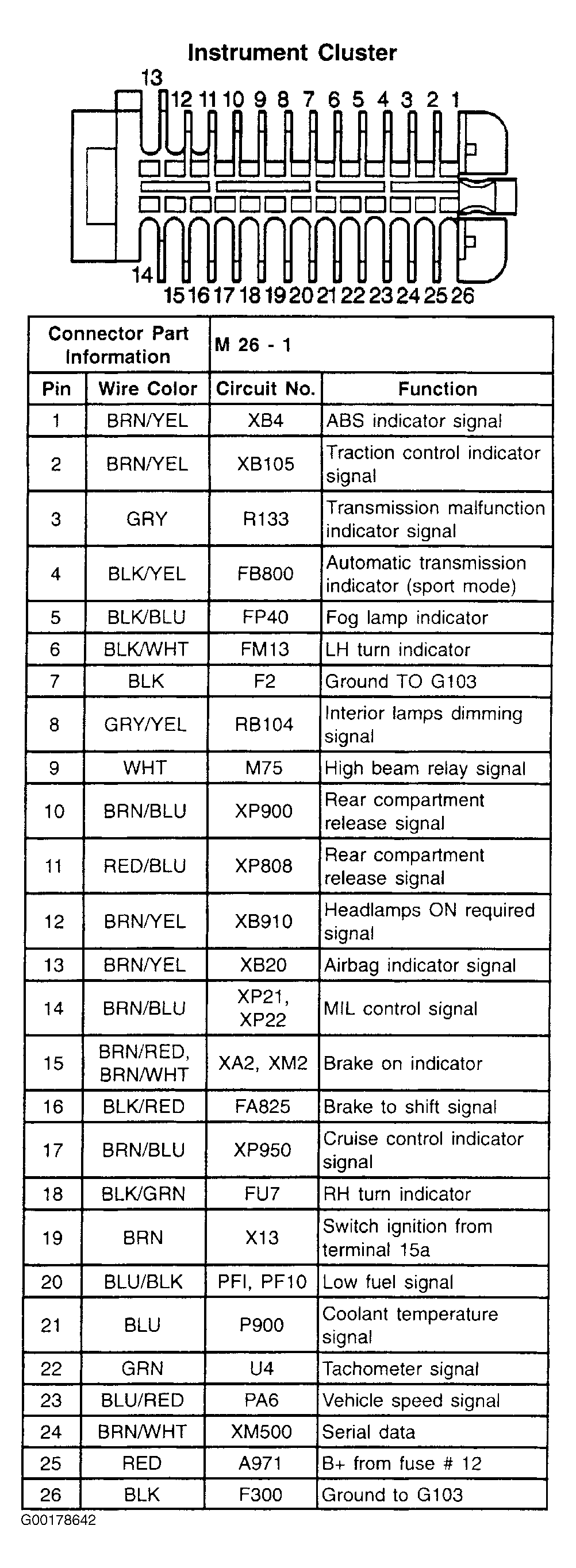

Fig 1: Instrument Cluster - 26-Pin Connector
Courtesy of GENERAL MOTORS CORP.
