Connector Terminal Identification
›
Lighting Systems
›
Auxiliary Brake Lamp
Auxiliary Brake Lamp

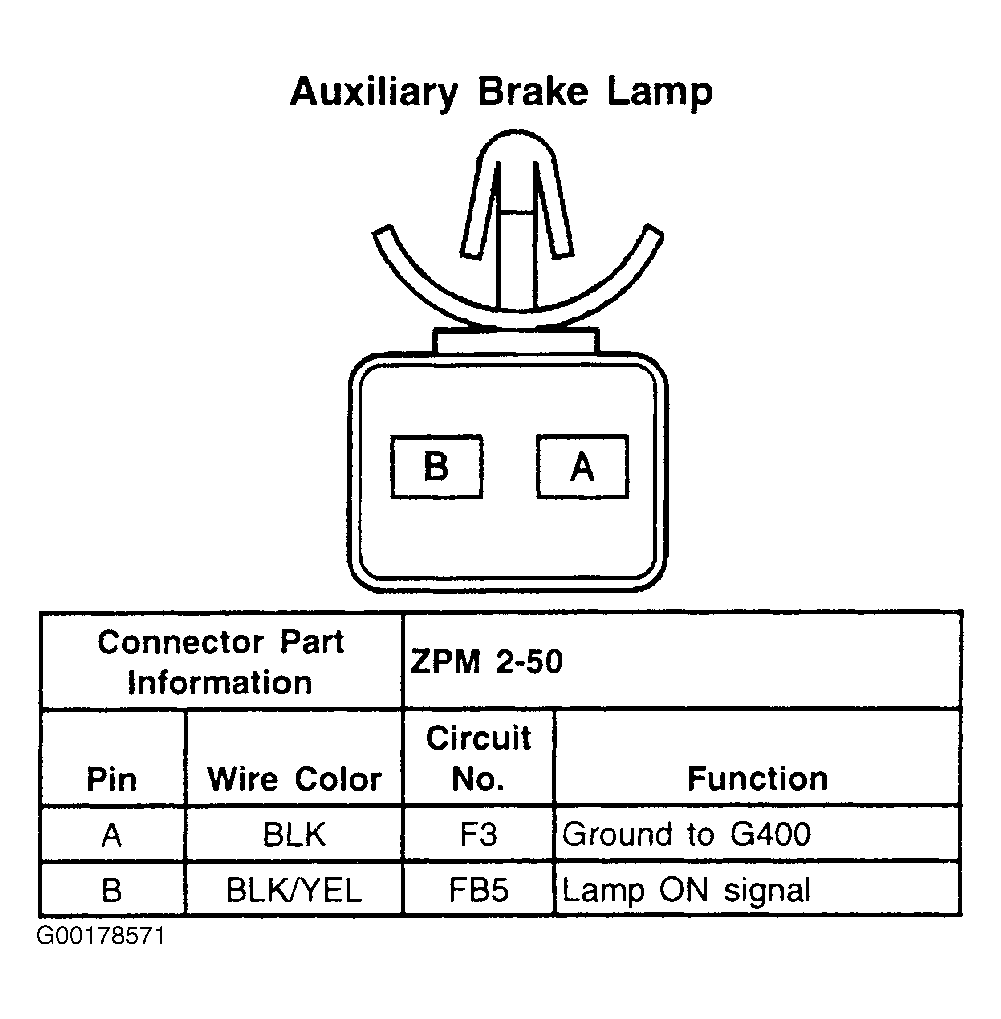

Fig 1: Auxiliary Brake Lamp - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
