Backup Lamp (Left Hand)
Backup Lamp (Left Hand)

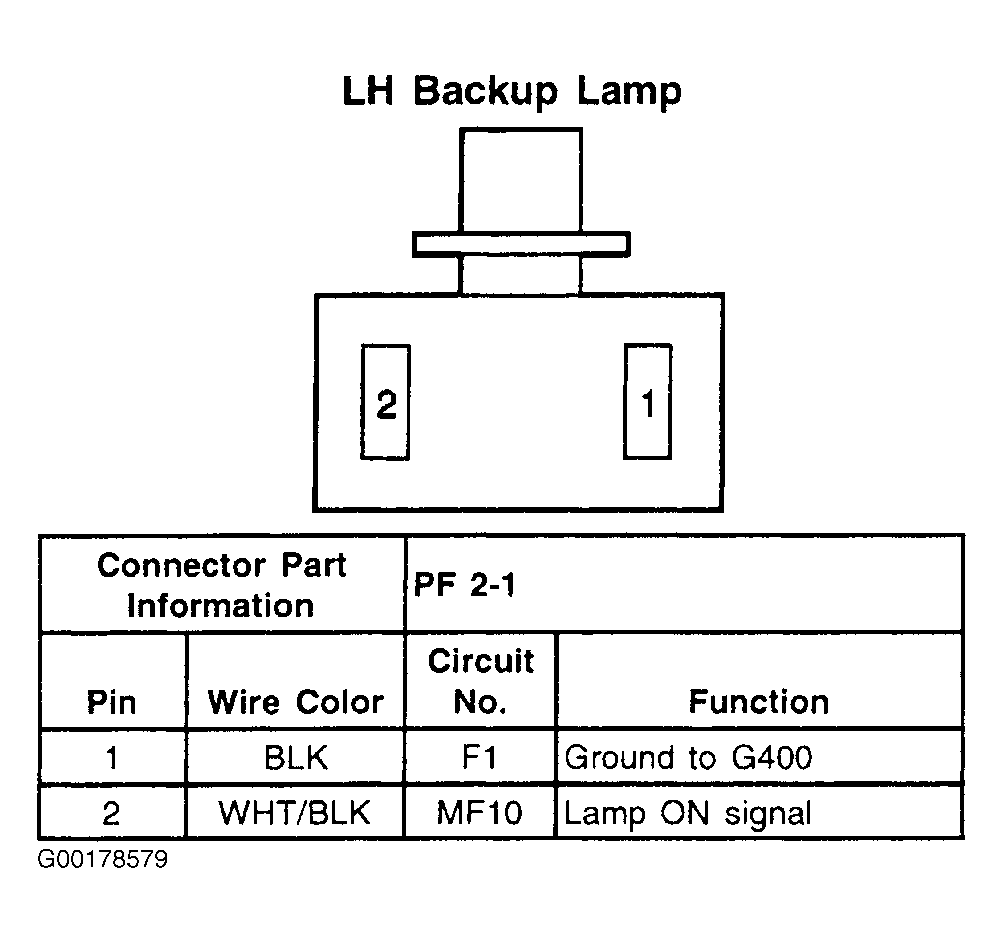

Fig 1: Backup Lamp (Left Hand) - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
