Daytime Running Lamps Relay K133

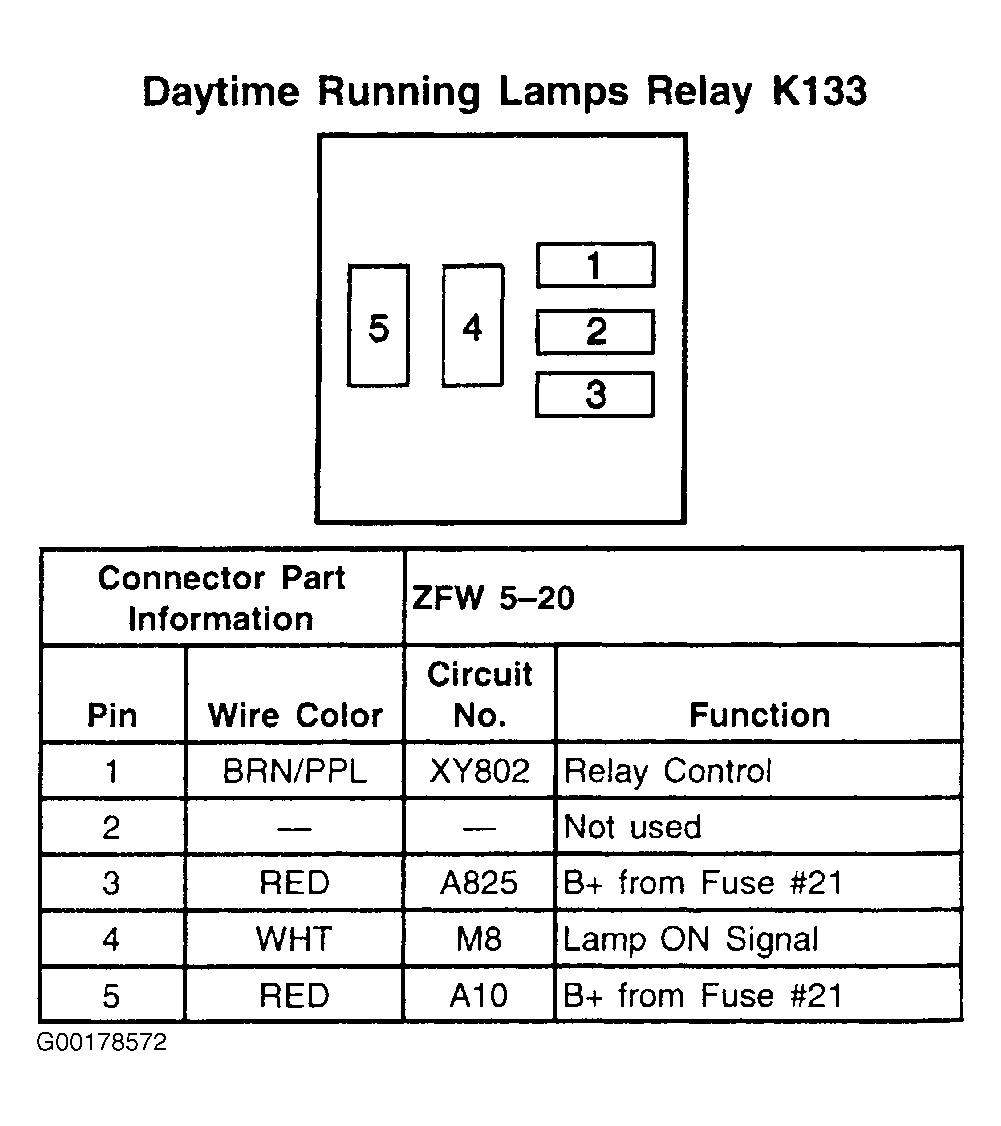

Fig 1: Daytime Running Lamps Relay K133 - 5-Pin Connector
G00178572Courtesy of GENERAL MOTORS CORP.
