Connector Terminal Identification
›
Lighting Systems
›
Dome & Reading Lamps
Dome & Reading Lamps

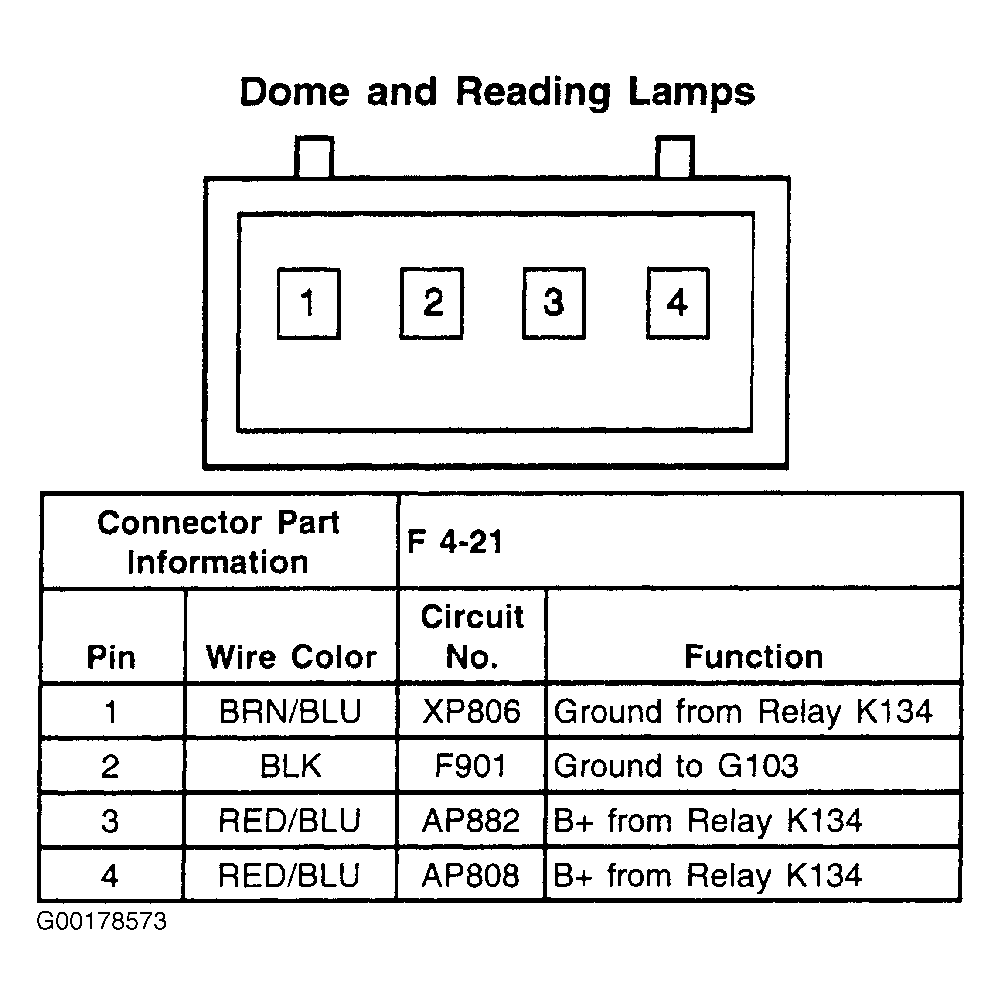

Fig 1: Dome & Reading Lamps - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
