Connector Terminal Identification
›
Lighting Systems
›
Fog Lamp (Left Hand)
Fog Lamp (Left Hand)

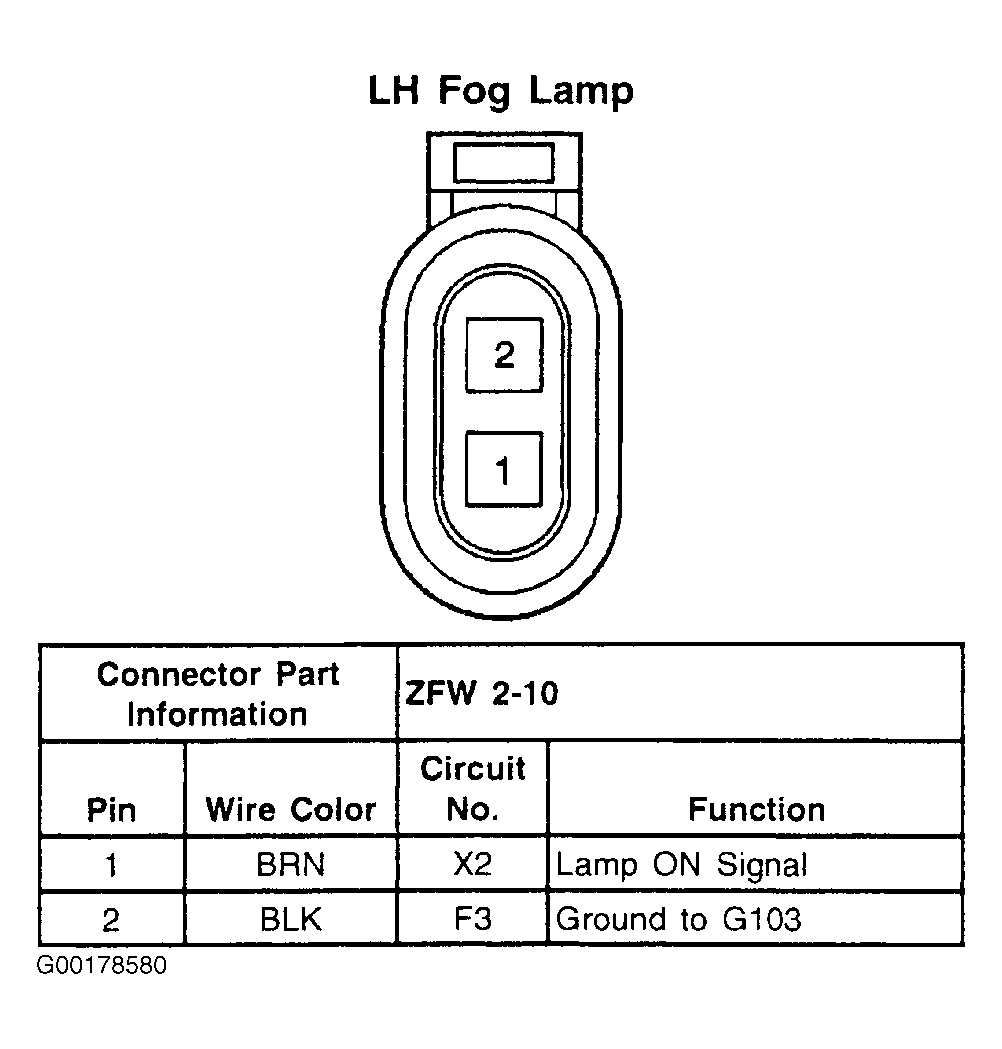

Fig 1: Fog Lamp (Left Hand) - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
