Home › Cadillac › 1997 › Catera › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Lighting Systems › Front Side Marker Lamp (Right Hand)

Front Side Marker Lamp (Right Hand)

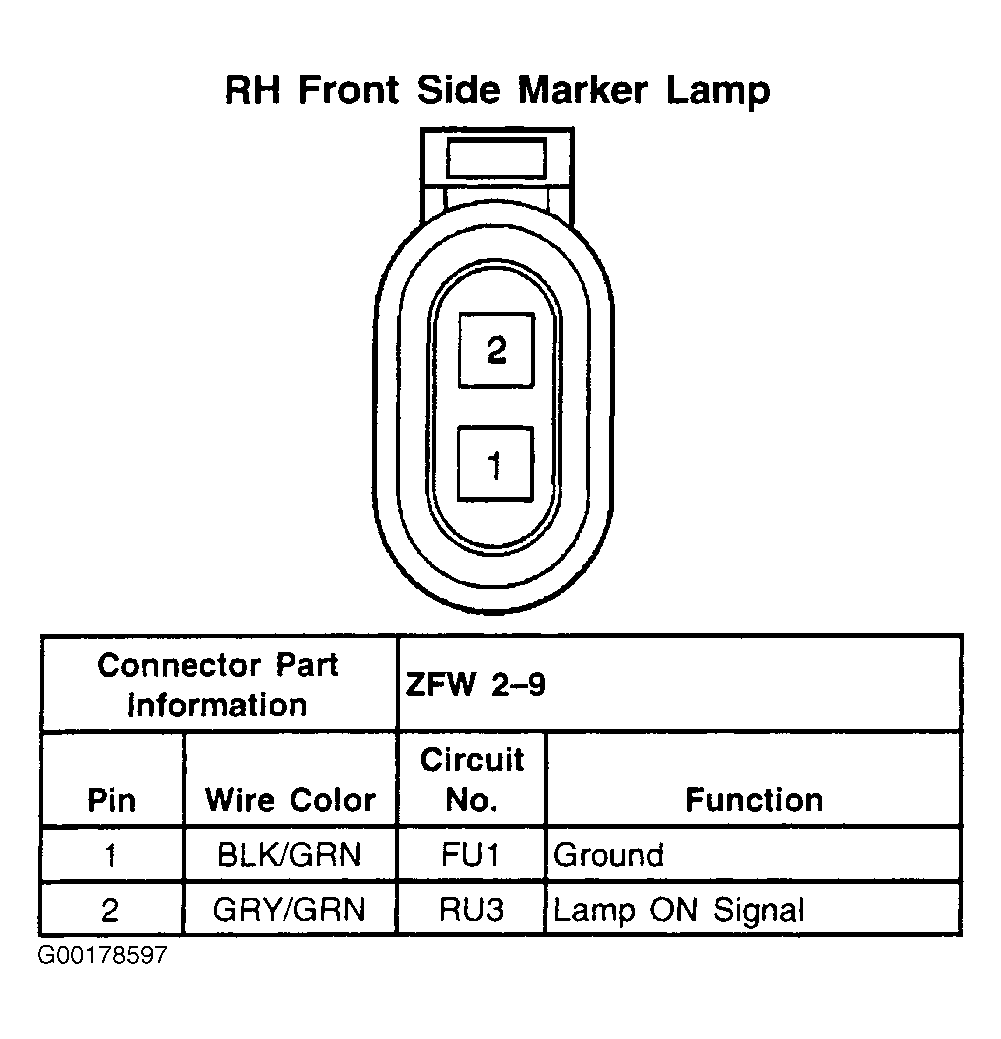

Fig 1: Front Side Marker Lamp (Right Hand) - 2-Pin Connector
G00178597Courtesy of GENERAL MOTORS CORP.
