Connector Terminal Identification
›
Lighting Systems
›
Headlamp Switch
Headlamp Switch

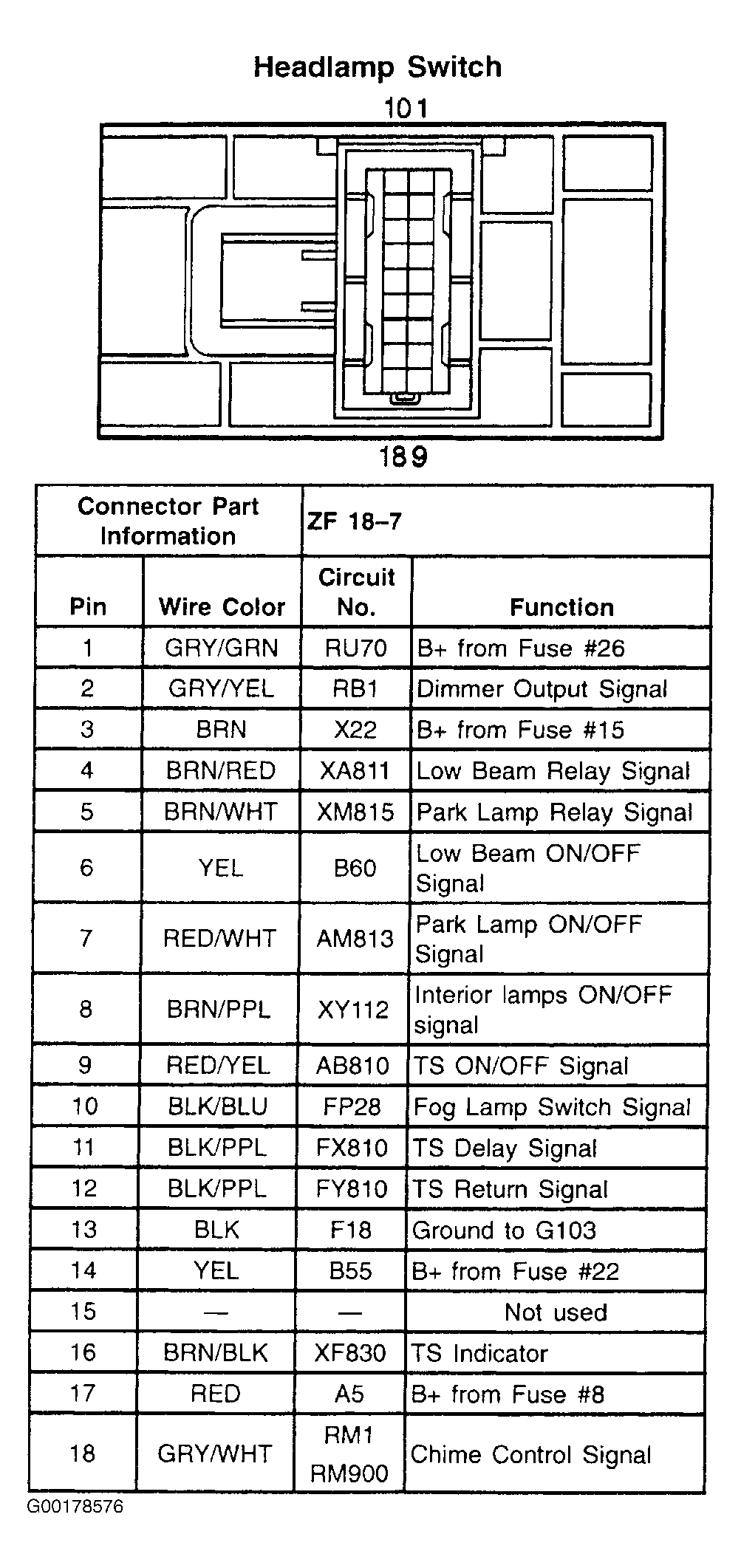

Fig 1: Headlamp Switch - 18-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
