High Beam Headlamp (Left Hand)

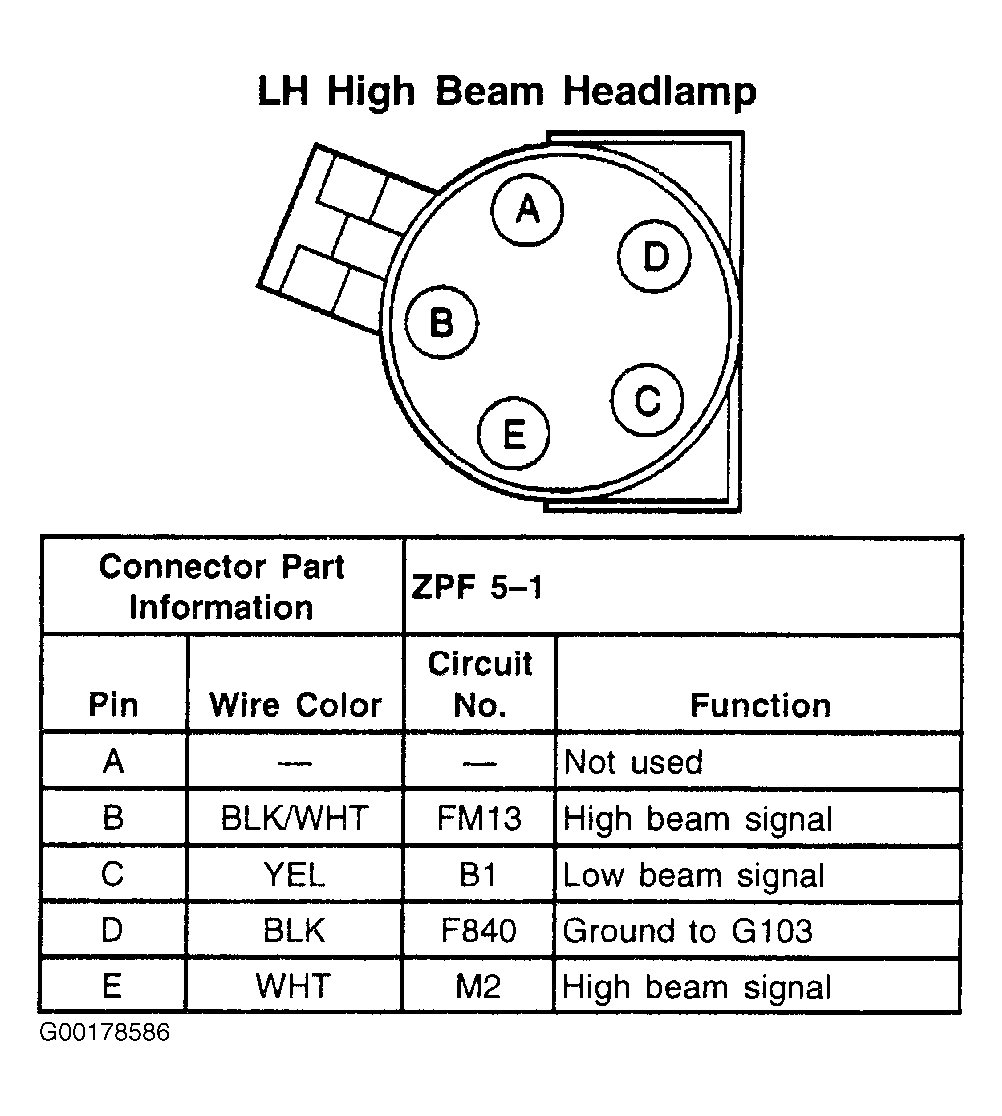

Fig 1: High Beam Headlamp (Left Hand) - 5-Pin Connector
G00178586Courtesy of GENERAL MOTORS CORP.
