High Beam Headlamp (Right Hand)

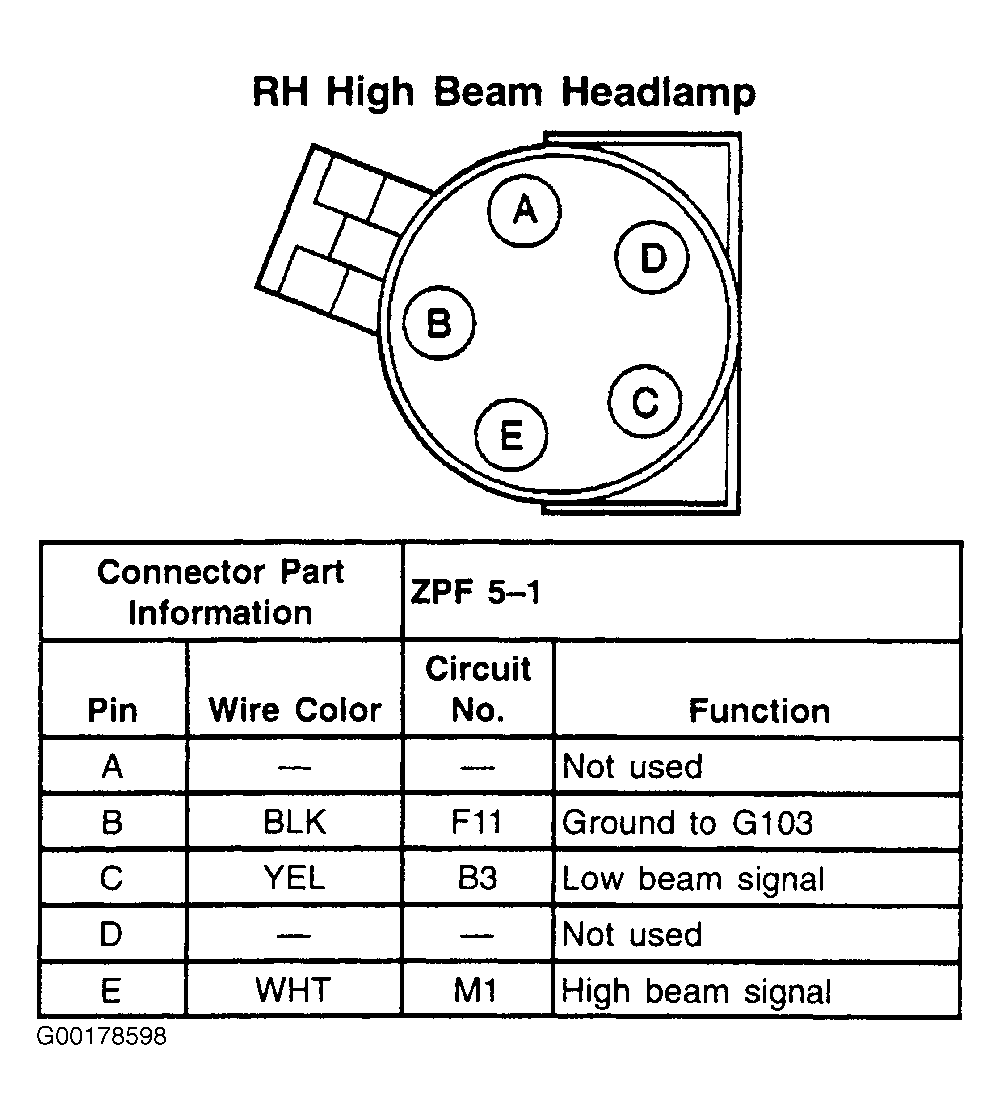

Fig 1: High Beam Headlamp (Right Hand) - 5-Pin Connector
G00178598Courtesy of GENERAL MOTORS CORP.
