I/P Compartment Lamp

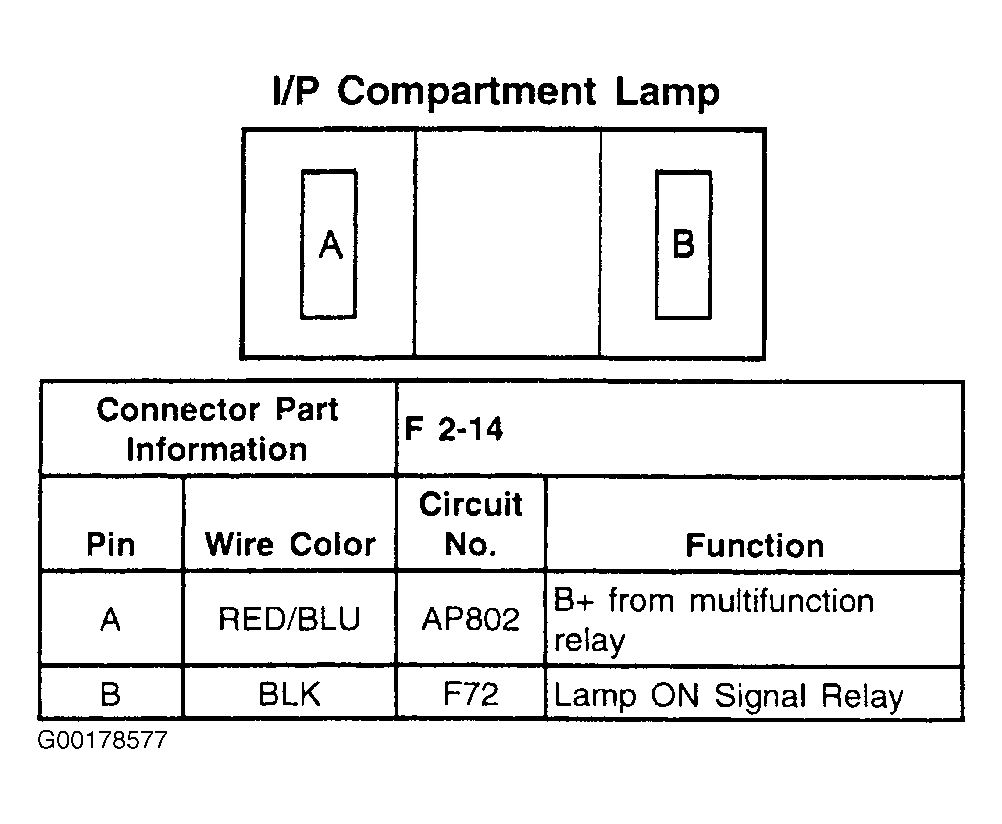

Fig 1: I/P Compartment Lamp - 2-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
