MULTIFUNCTION Relay K134

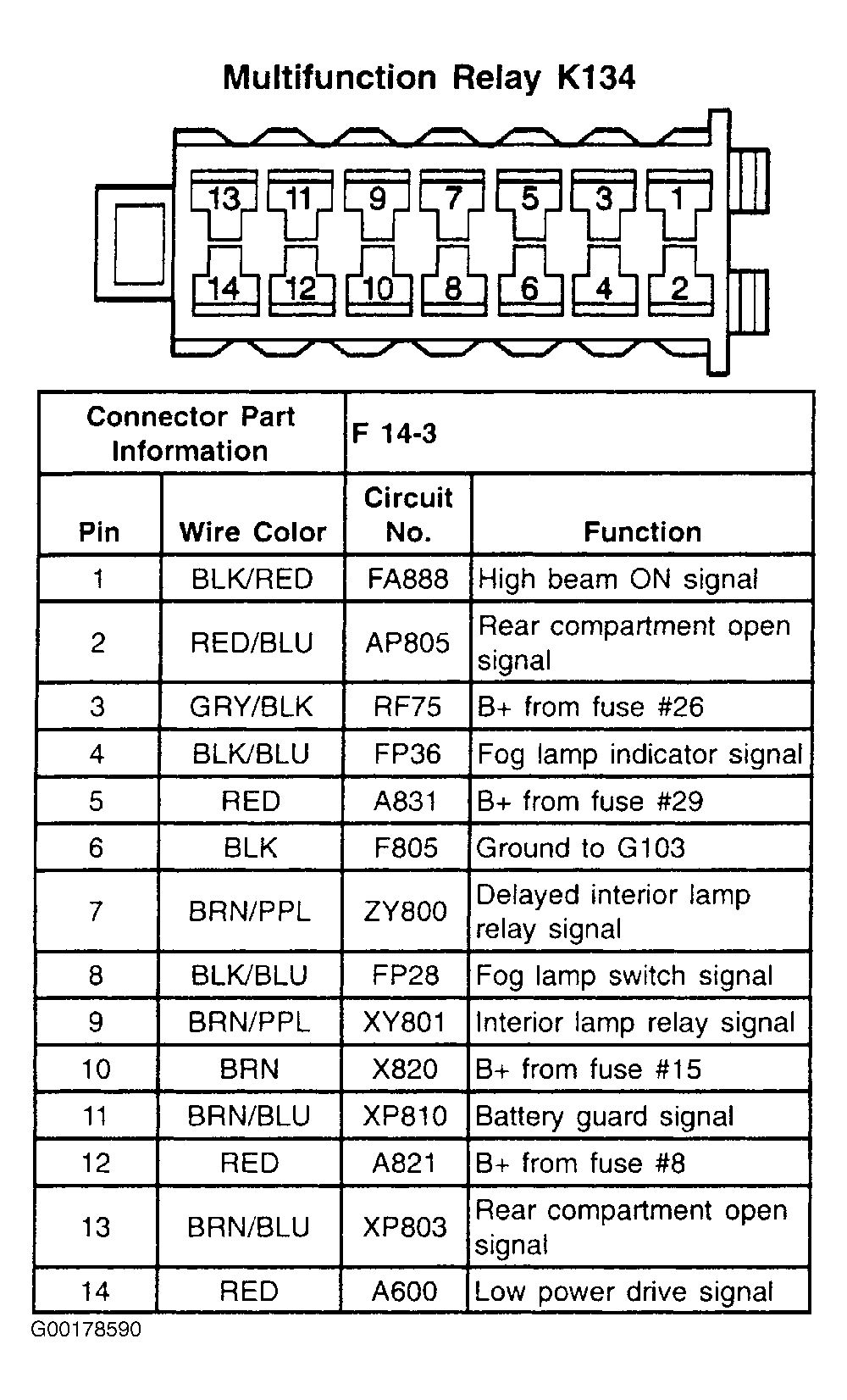

Fig 1: Multifunction Relay K134 - 14-Pin Connector
G00178590Courtesy of GENERAL MOTORS CORP.
