Park Lamp Relay K130
Park Lamp Relay K130

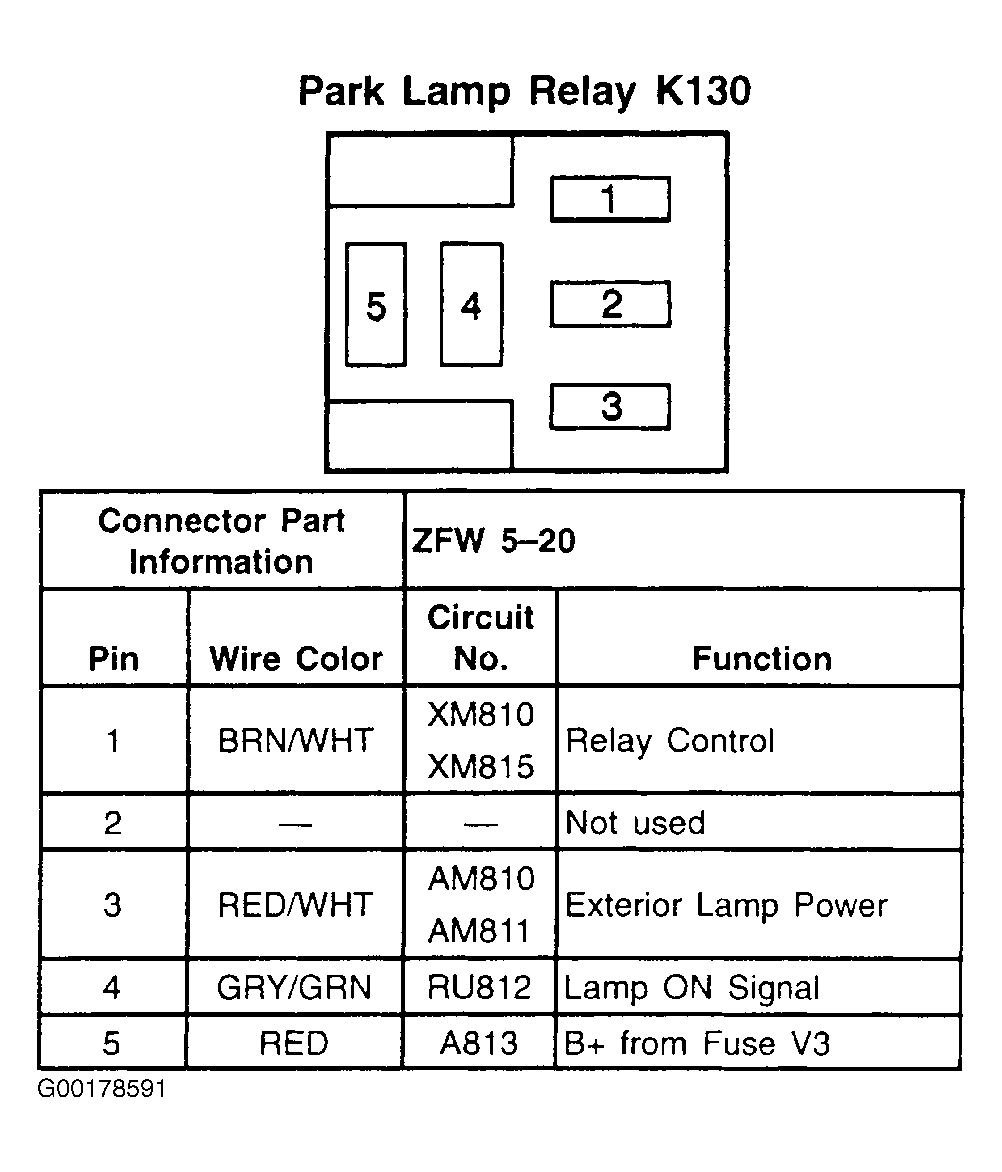

Fig 1: Park Lamp Relay K130 - 5-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
