Park/Turn Signal Lamp (Left Hand)

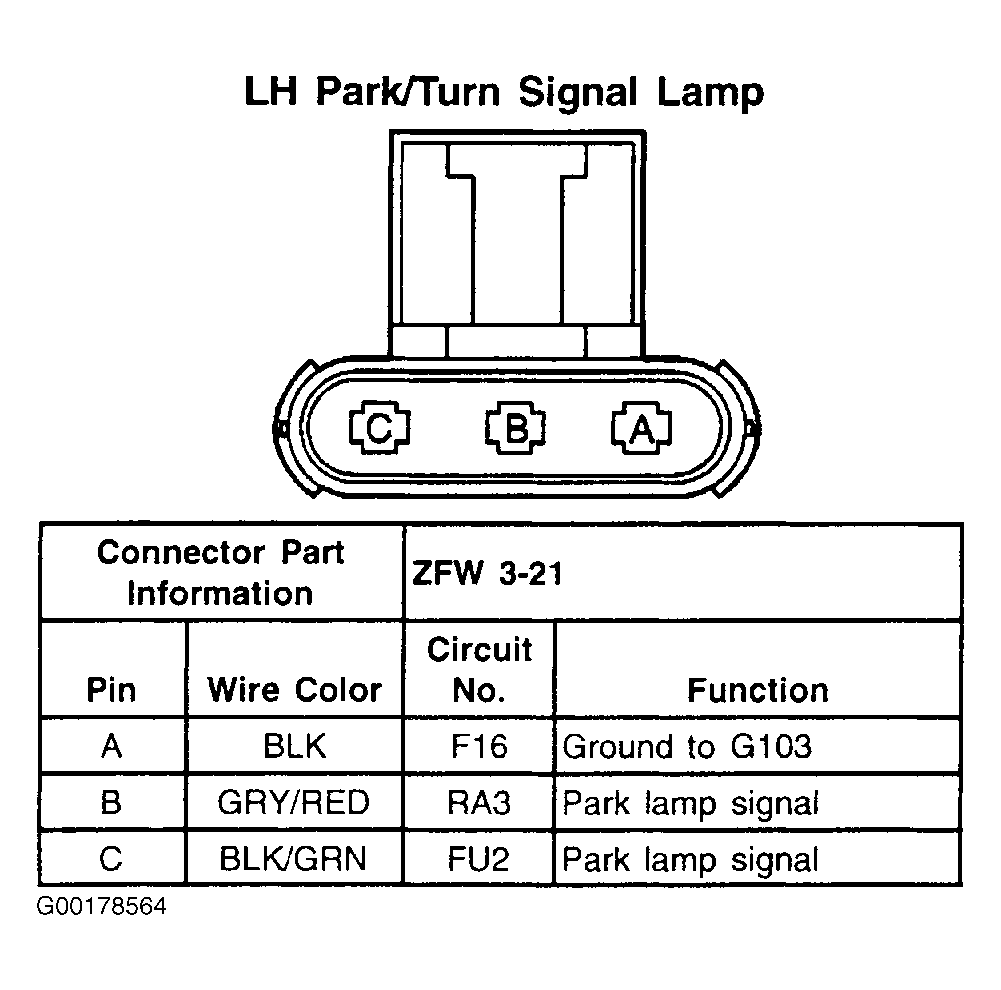

Fig 1: Park/Turn Signal Lamp (Left Hand) - 3-Pin Connector
G00178564Courtesy of GENERAL MOTORS CORP.
