Lighting Systems
›
Park/Turn Signal Lamp (Right Hand)
Park/Turn Signal Lamp (Right Hand)

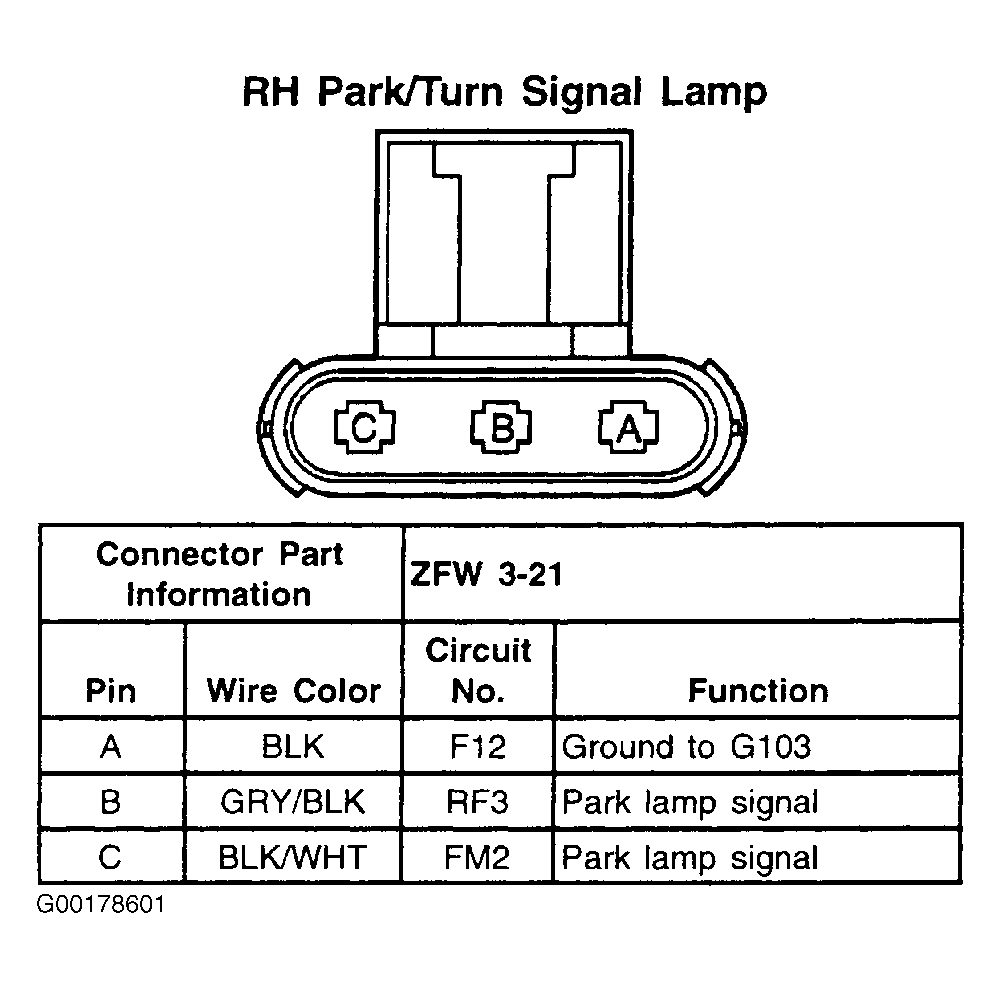

Fig 1: Park/Turn Signal Lamp (Right Hand) - 3-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
