Rear Side Door Jamb Switch (Right Hand)

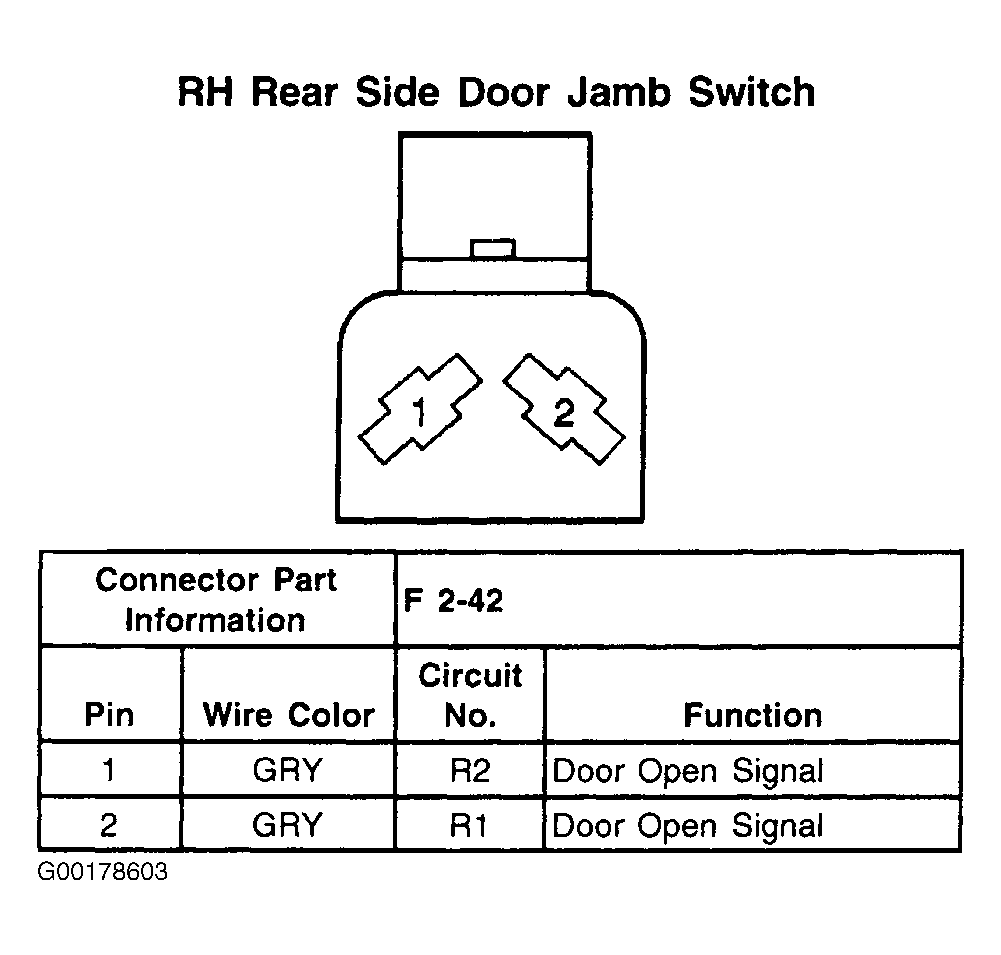

Fig 1: Rear Side Door Jamb Switch (Right Hand) - 2-Pin Connector
G00178603Courtesy of GENERAL MOTORS CORP.
