Rear Side Marker Lamp (Right Hand)

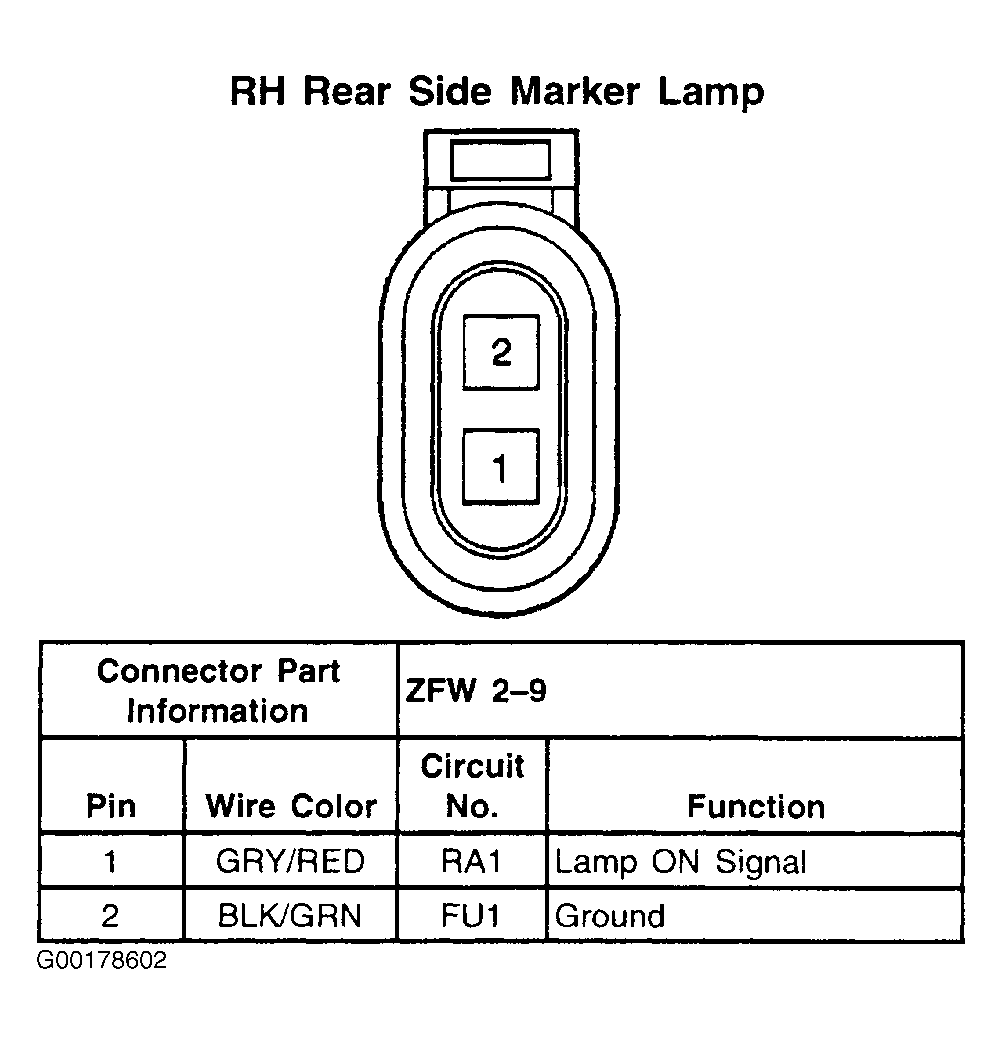

Fig 1: Rear Side Marker Lamp (Right Hand) - 2-Pin Connector
G00178602Courtesy of GENERAL MOTORS CORP.
