Stop/TAILLAMP (Left Hand)

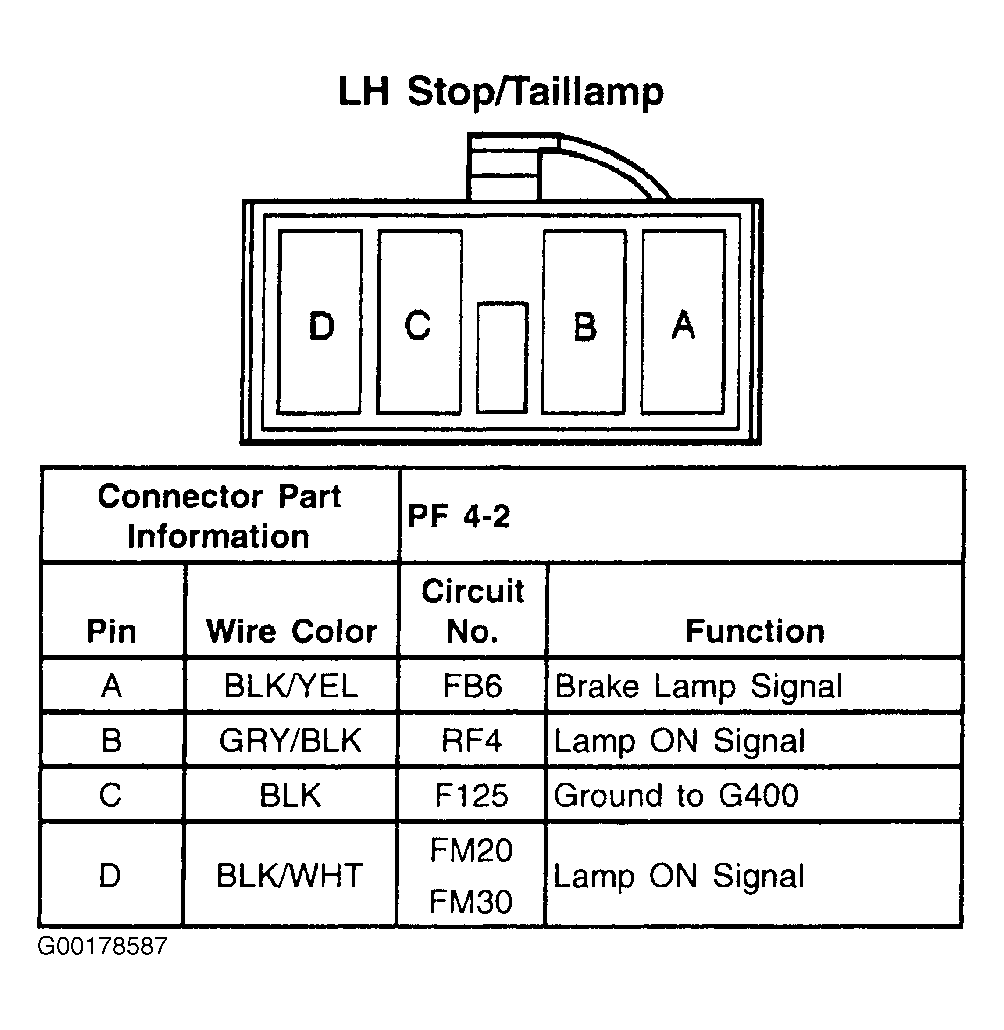

Fig 1: Stop/Taillamp (Left Hand) - 5-Pin Connector
G00178587Courtesy of GENERAL MOTORS CORP.
