Stop/TAILLAMP (Right Hand)
Stop/TAILLAMP (Right Hand)

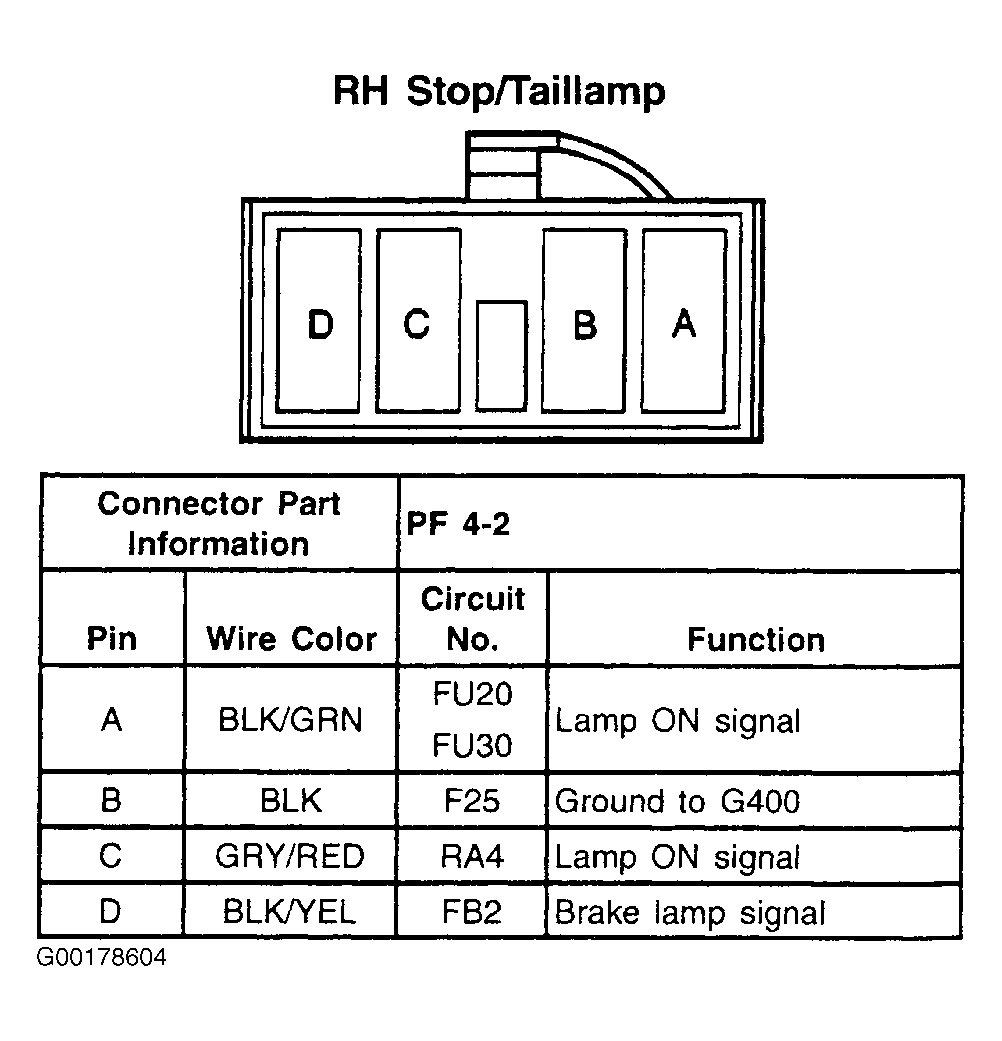

Fig 1: Stop/Taillamp (Right Hand) - 4-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
