TAILLAMP (Middle)

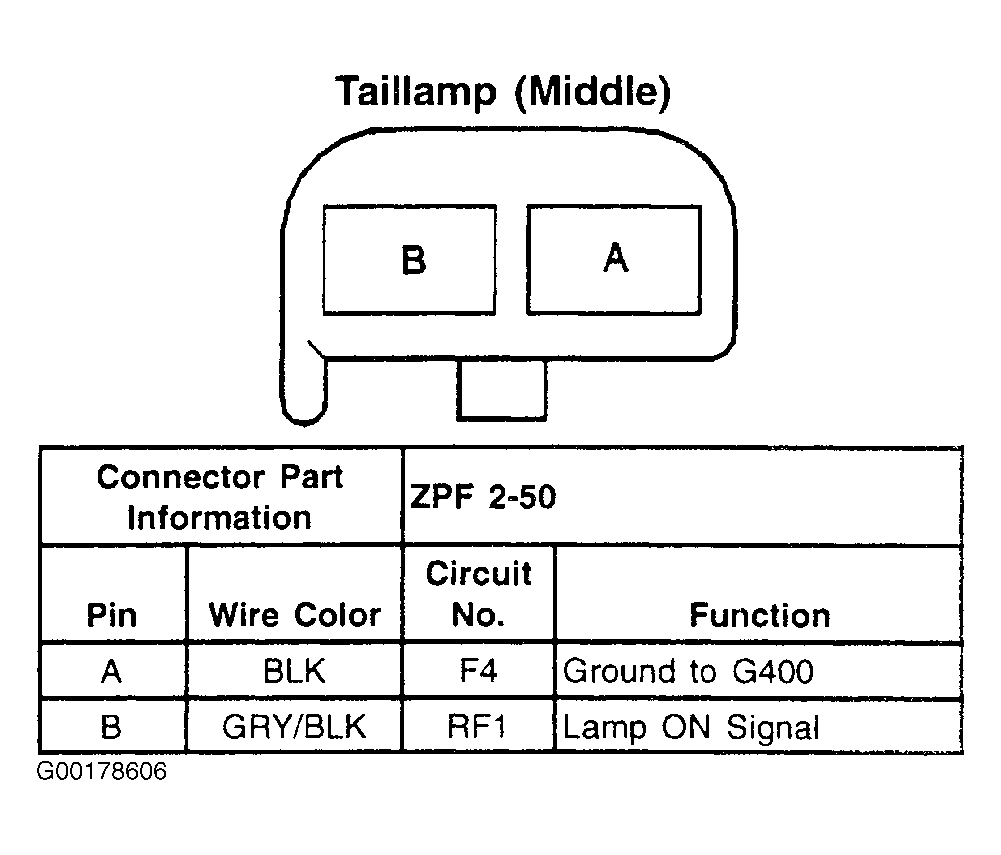

Fig 1: Taillamp (Middle) - 2-Pin Connector
G00178606Courtesy of GENERAL MOTORS CORP.
