Turn Signal Lamp Flasher K10
Turn Signal Lamp Flasher K10

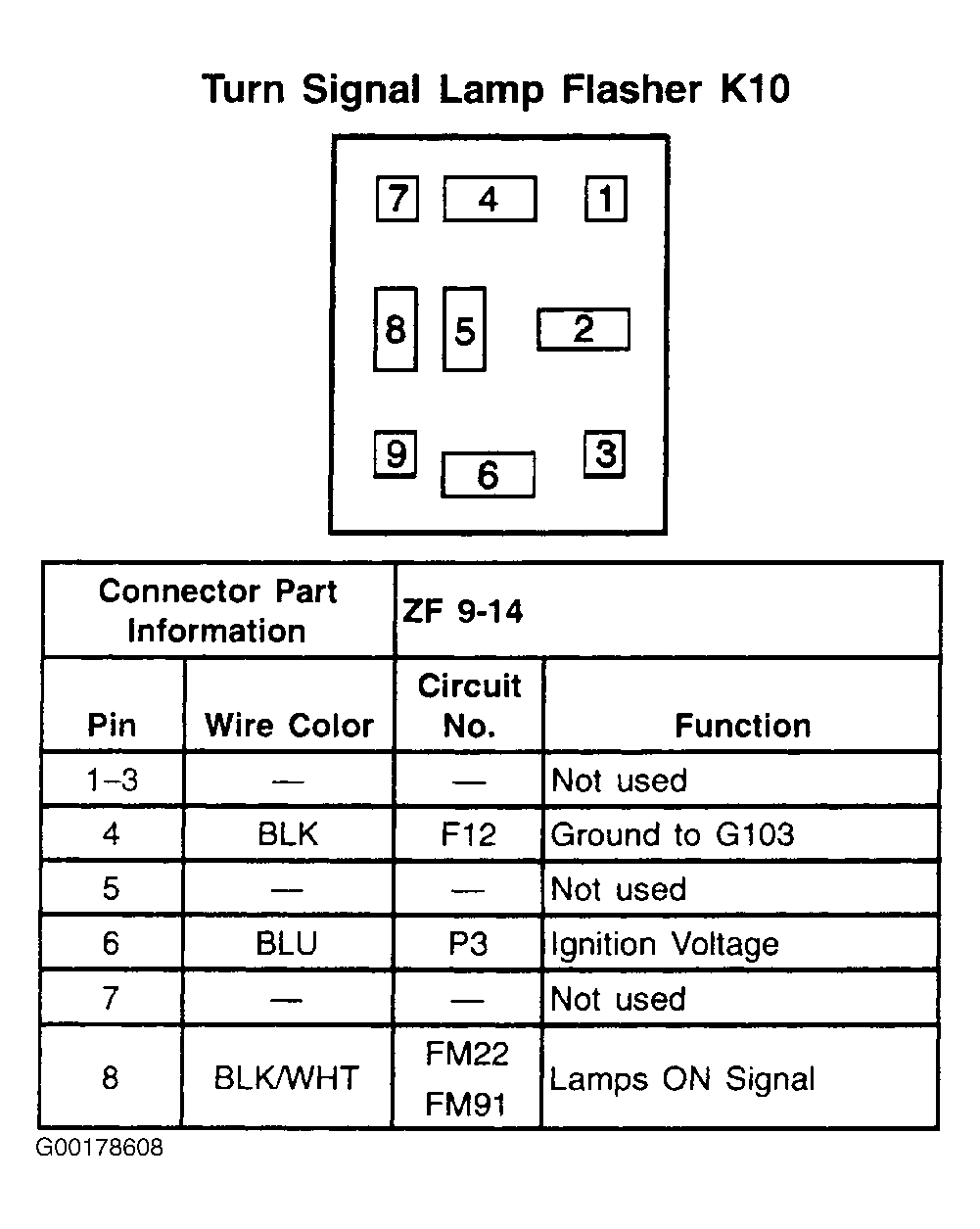

Fig 1: Turn Signal Lamp Flasher K10 - 9-Pin Connector
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
