Home › Cadillac › 1997 › Catera › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Power & Grounding › Cigarette Lighter (Front)

Cigarette Lighter (Front)

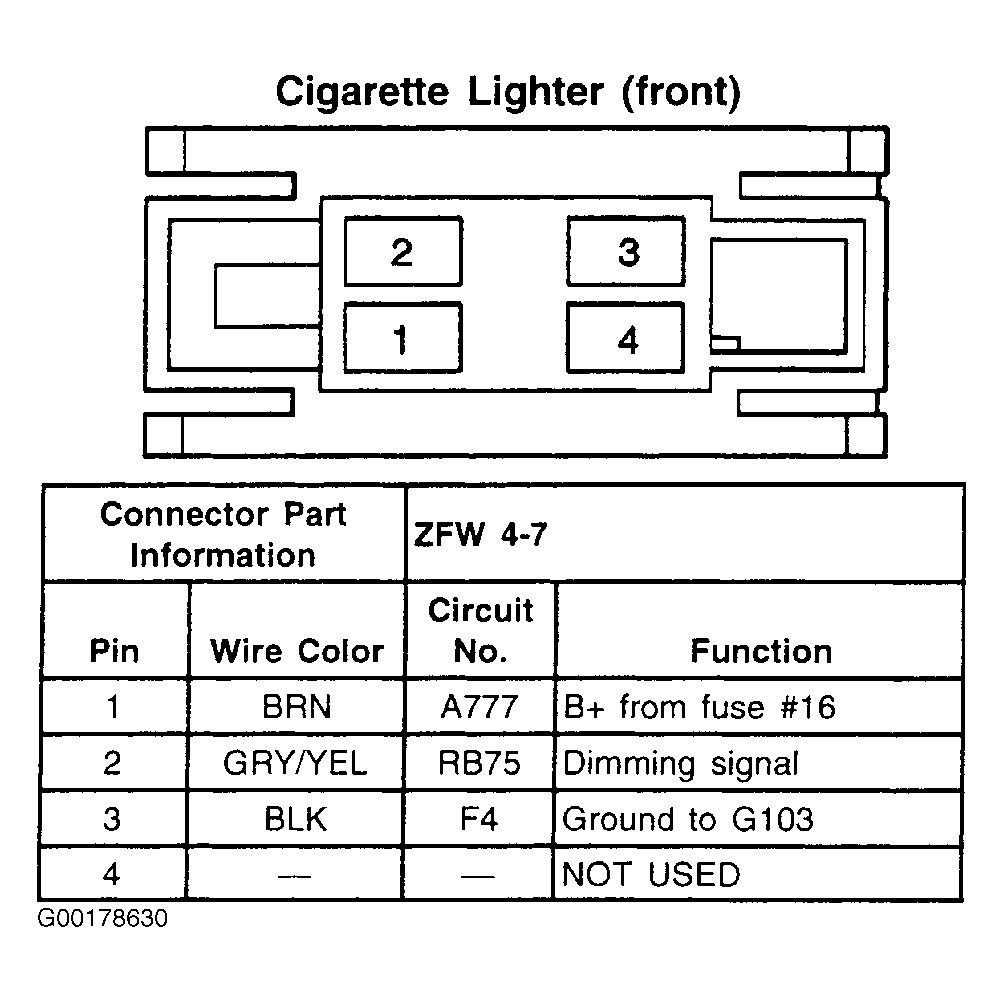

Fig 1: Cigarette Lighter (Front) - 4-Pin Connector
G00178630Courtesy of GENERAL MOTORS CORP.
