Front Side Door Lock Actuator (Left Hand)

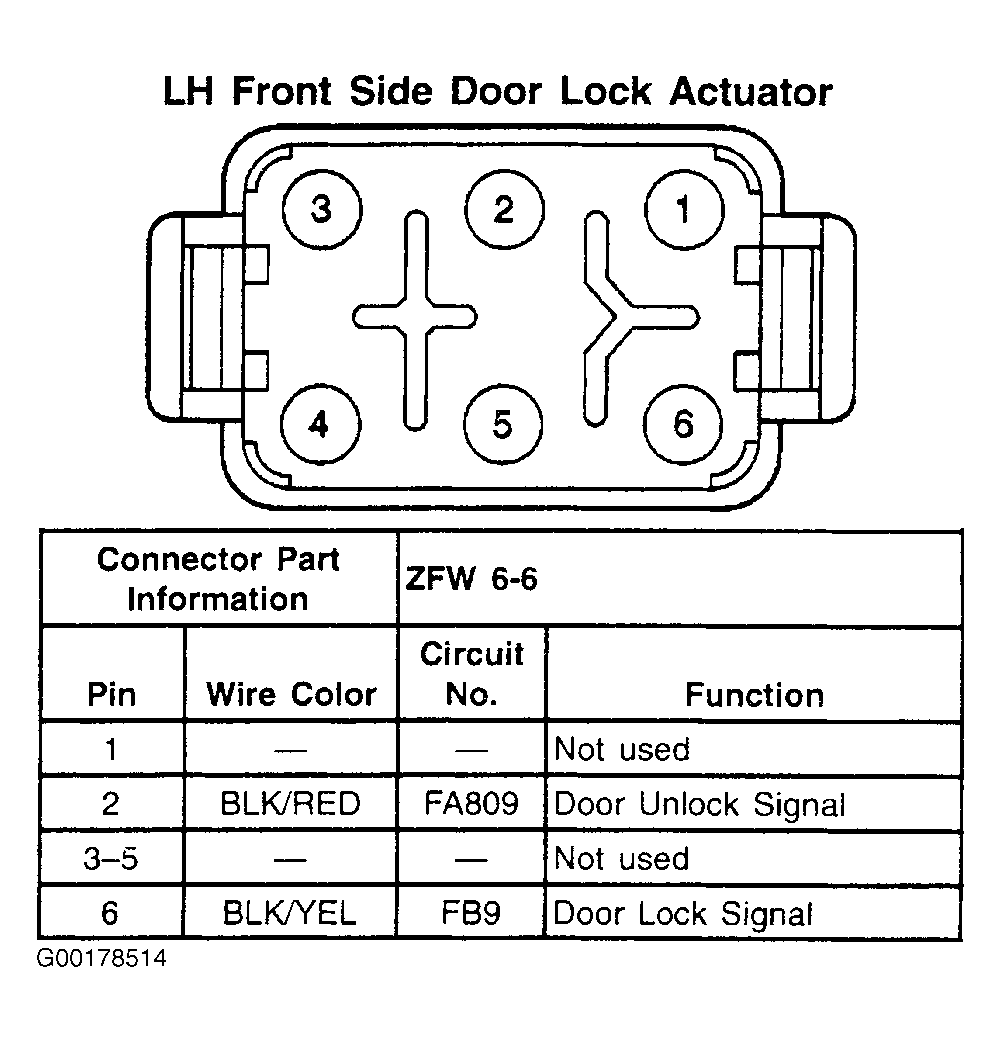

Fig 1: Front Side Door Lock Actuator (Left Hand) - 6-Pin Connector
G00178514Courtesy of GENERAL MOTORS CORP.
