Front Side Door Lock Actuator (Right Hand)

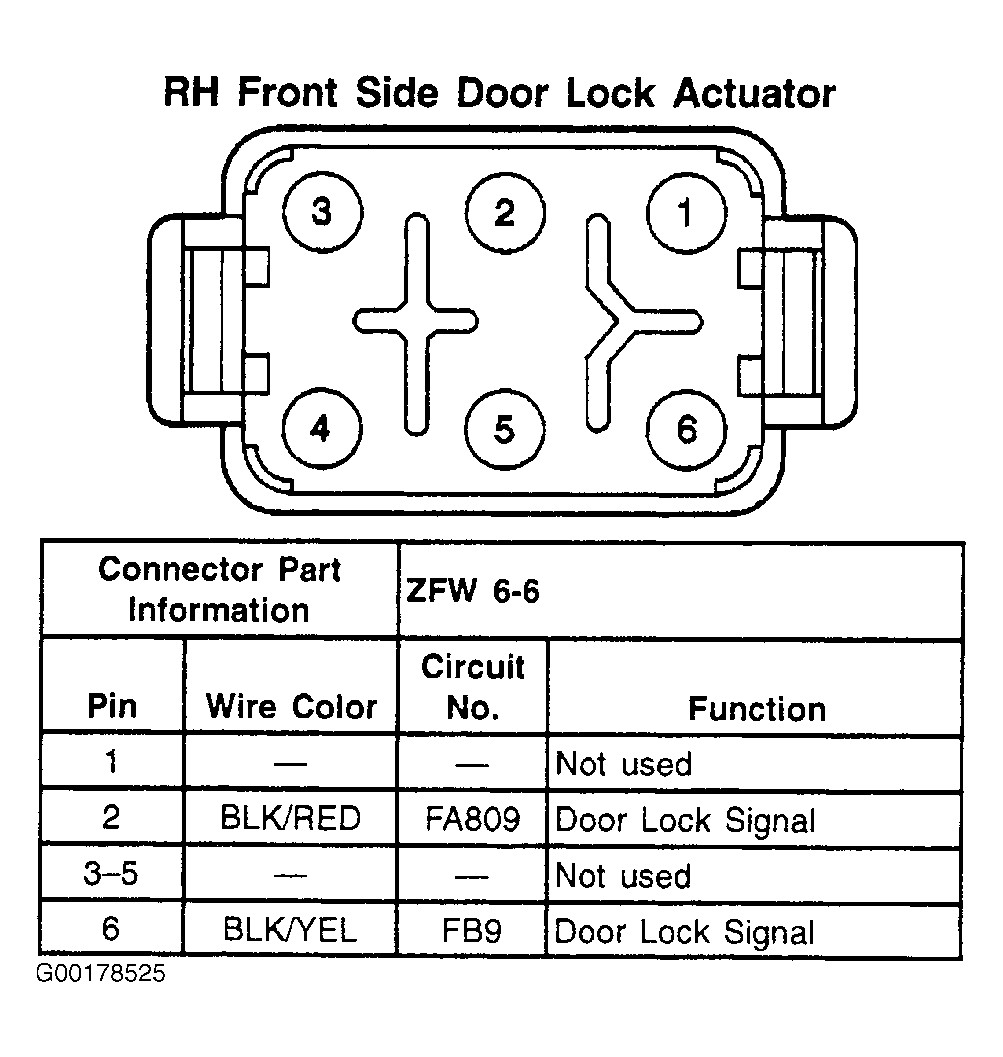

Fig 1: Front Side Door Lock Actuator - 6-Pin Connector
G00178525Courtesy of GENERAL MOTORS CORP.
