Front Side Door Window Switch (Left Hand)

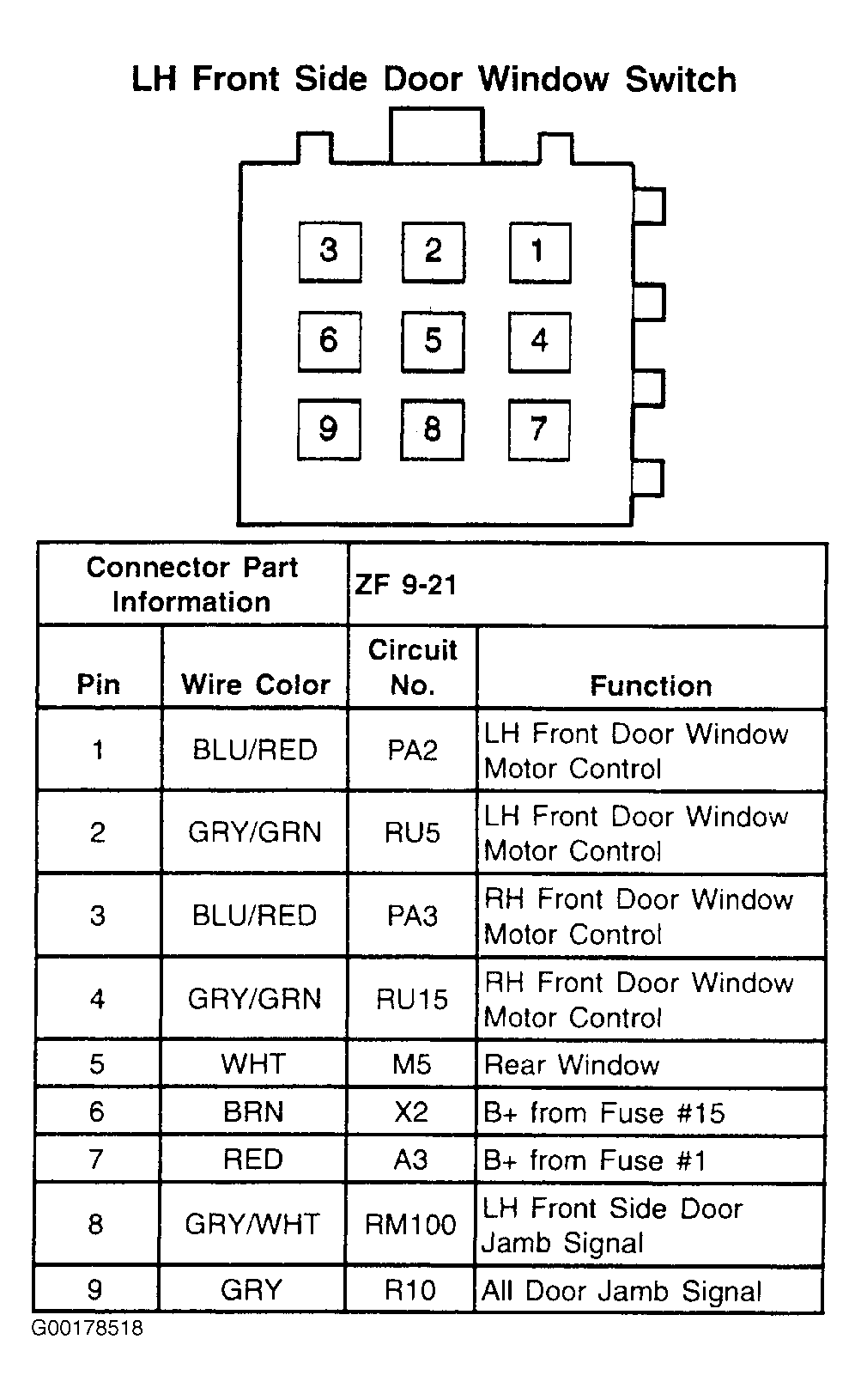

Fig 1: Front Side Door Window Switch (Left Hand) - 9-Pin Connector
G00178518Courtesy of GENERAL MOTORS CORP.
