Front Side Door Window Switch (Right Hand)

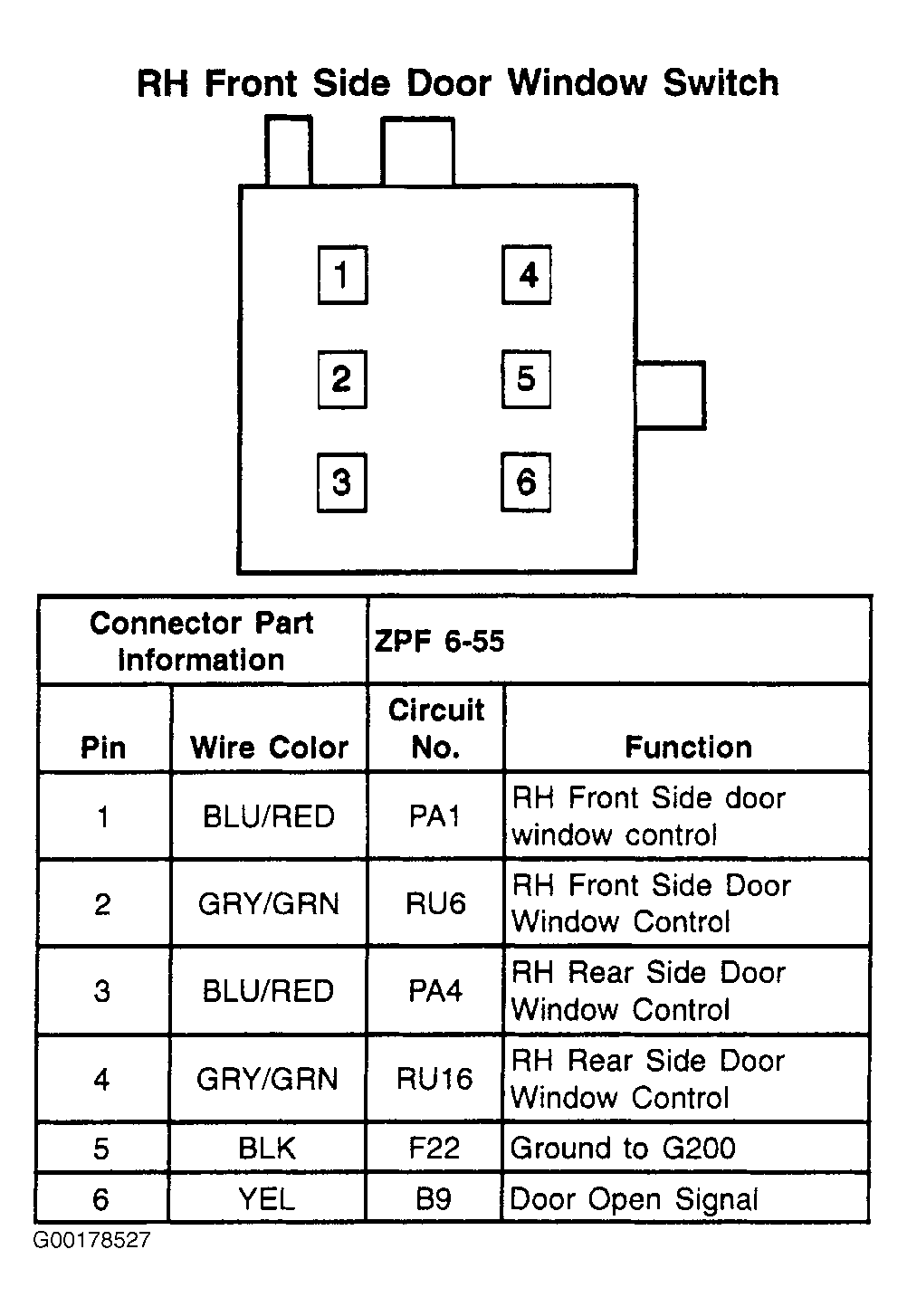

Fig 1: Front Side Door Window Switch - 6-Pin Connector
G00178527Courtesy of GENERAL MOTORS CORP.
