Outside Rear View Mirror - With Memory (Left Hand)

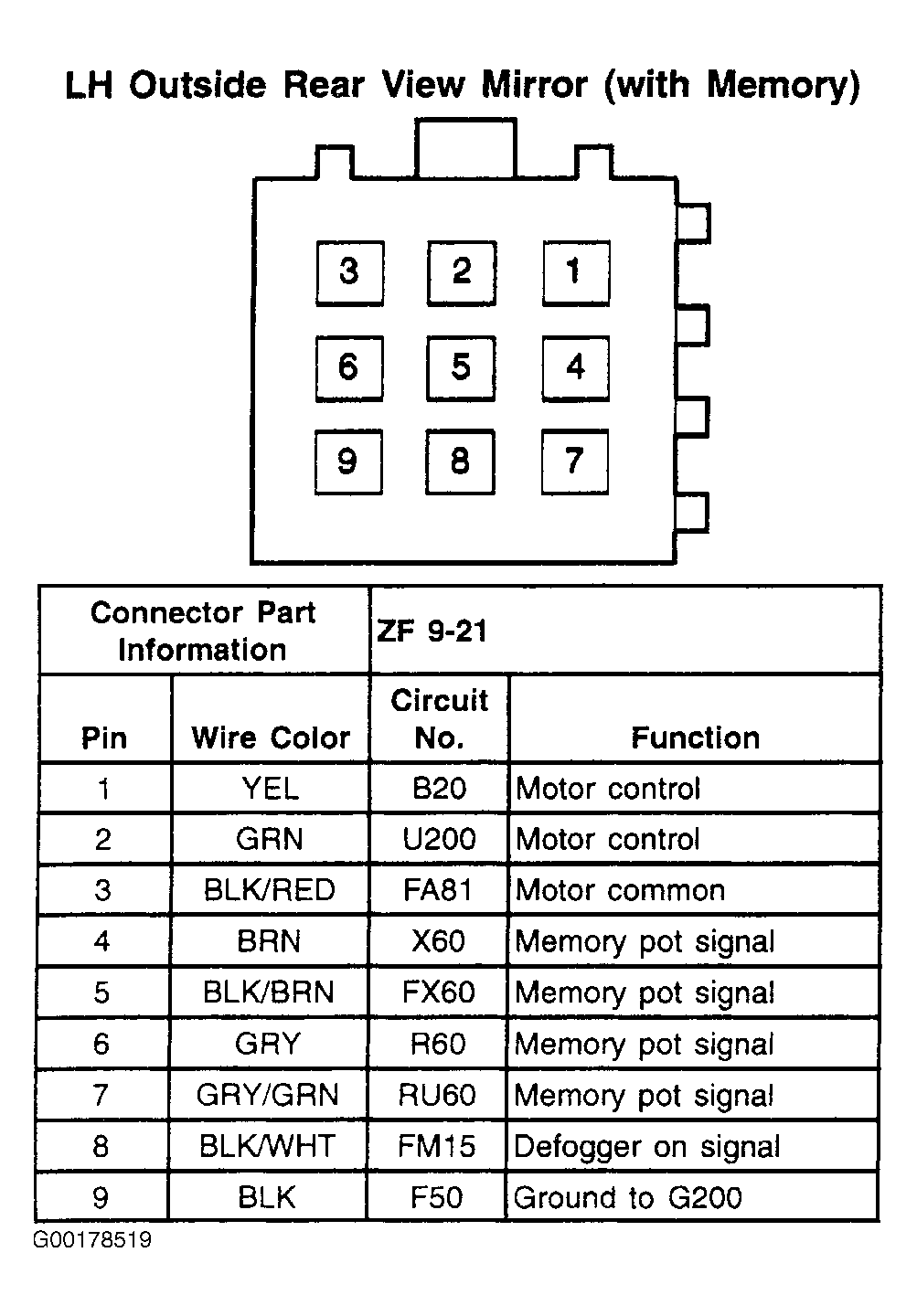

Fig 1: Outside Rear View Mirror (With Memory) - 9-Pin Connector
G00178519Courtesy of GENERAL MOTORS CORP.
