Outside Rear View Mirror - With Memory (Right Hand)

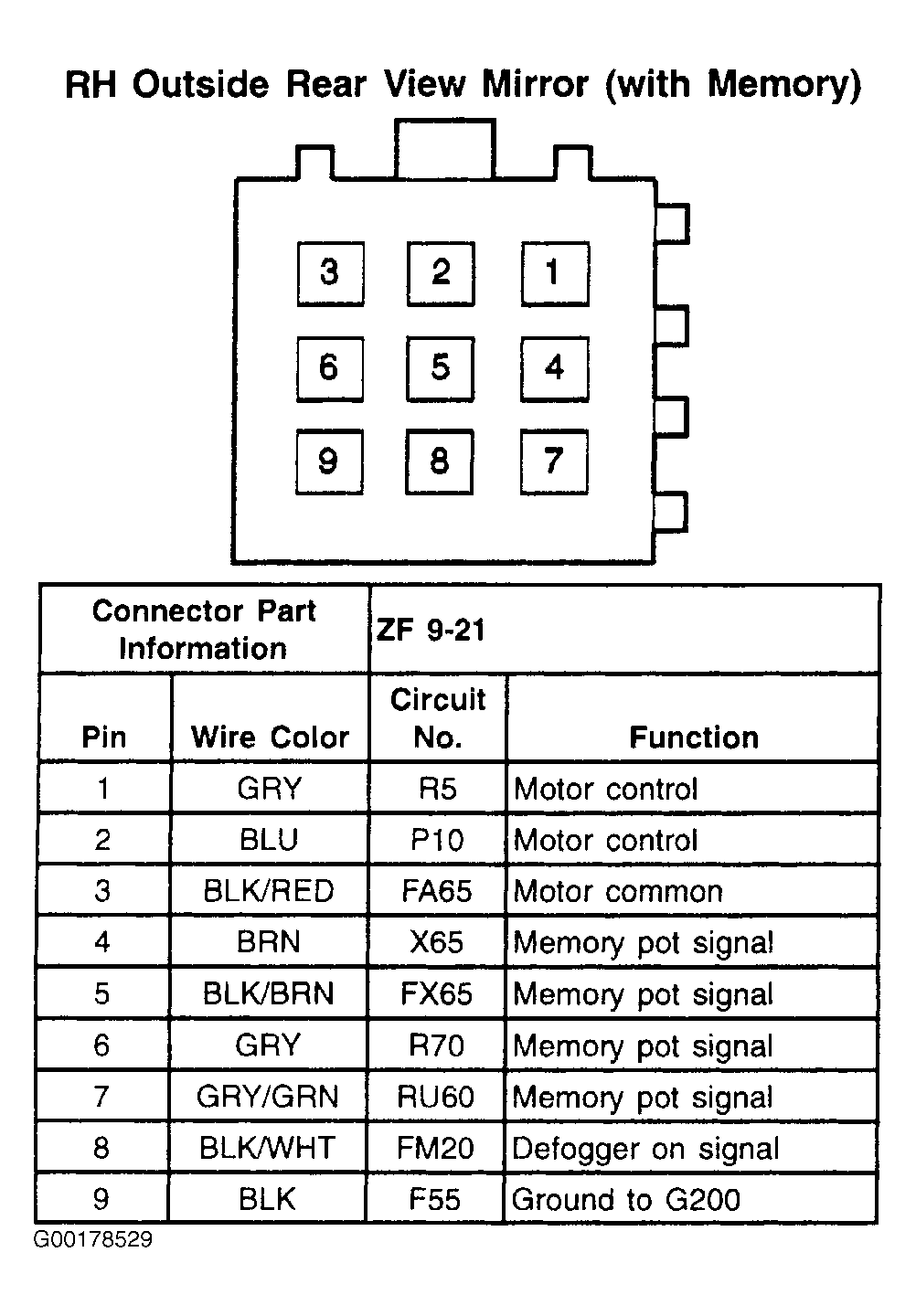

Fig 1: Outside Rear View Mirror - With Memory (Right Hand) - 9-Pin Connector
G00178529Courtesy of GENERAL MOTORS CORP.
