Outside Rear View Mirror - Without Memory (Left Hand)

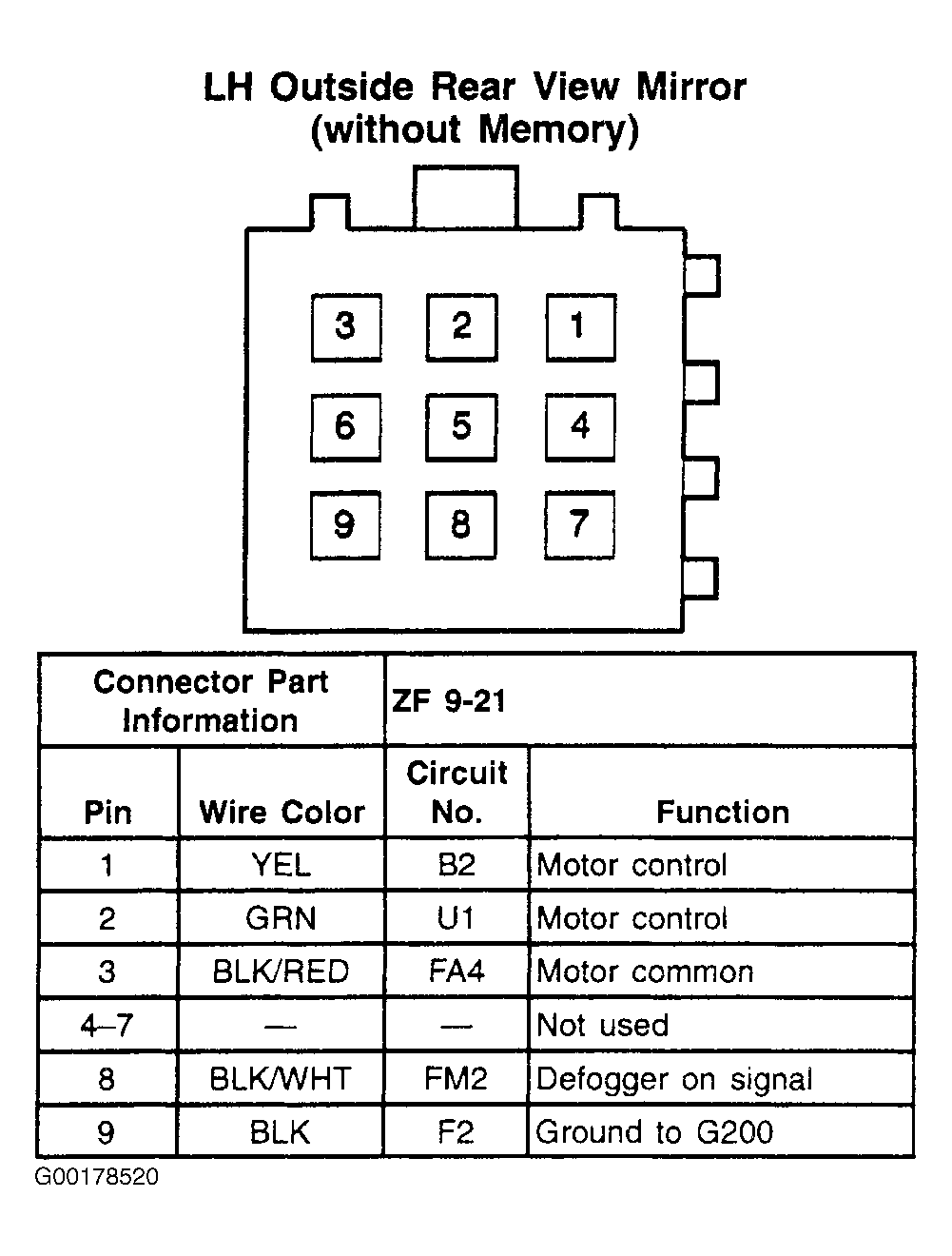

Fig 1: Outside Rear View Mirror (Without Memory) - 9-Pin Connector
G00178520Courtesy of GENERAL MOTORS CORP.
