Outside Rear View Mirror - Without Memory (Right Hand)

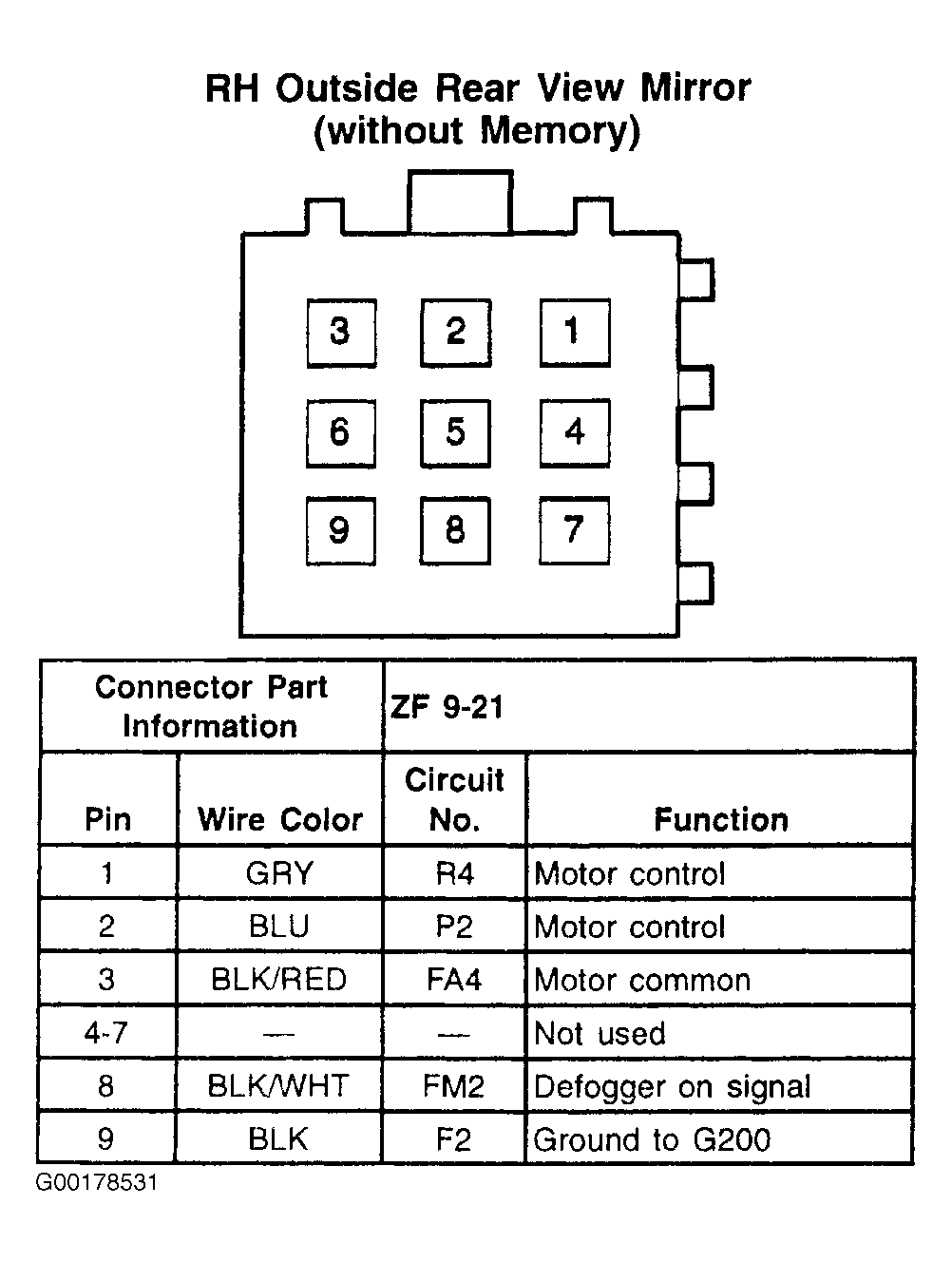

Fig 1: Outside Rear View Mirror - Without Memory (Right Hand) - 9-Pin Connector
G00178531Courtesy of GENERAL MOTORS CORP.
