Home › Cadillac › 1997 › Catera › Repair and Diagnosis › Engine Performance › System › Connector Terminal Identification › Power Doors › Rear Side Door Window Switch (Left Hand)

Rear Side Door Window Switch (Left Hand)

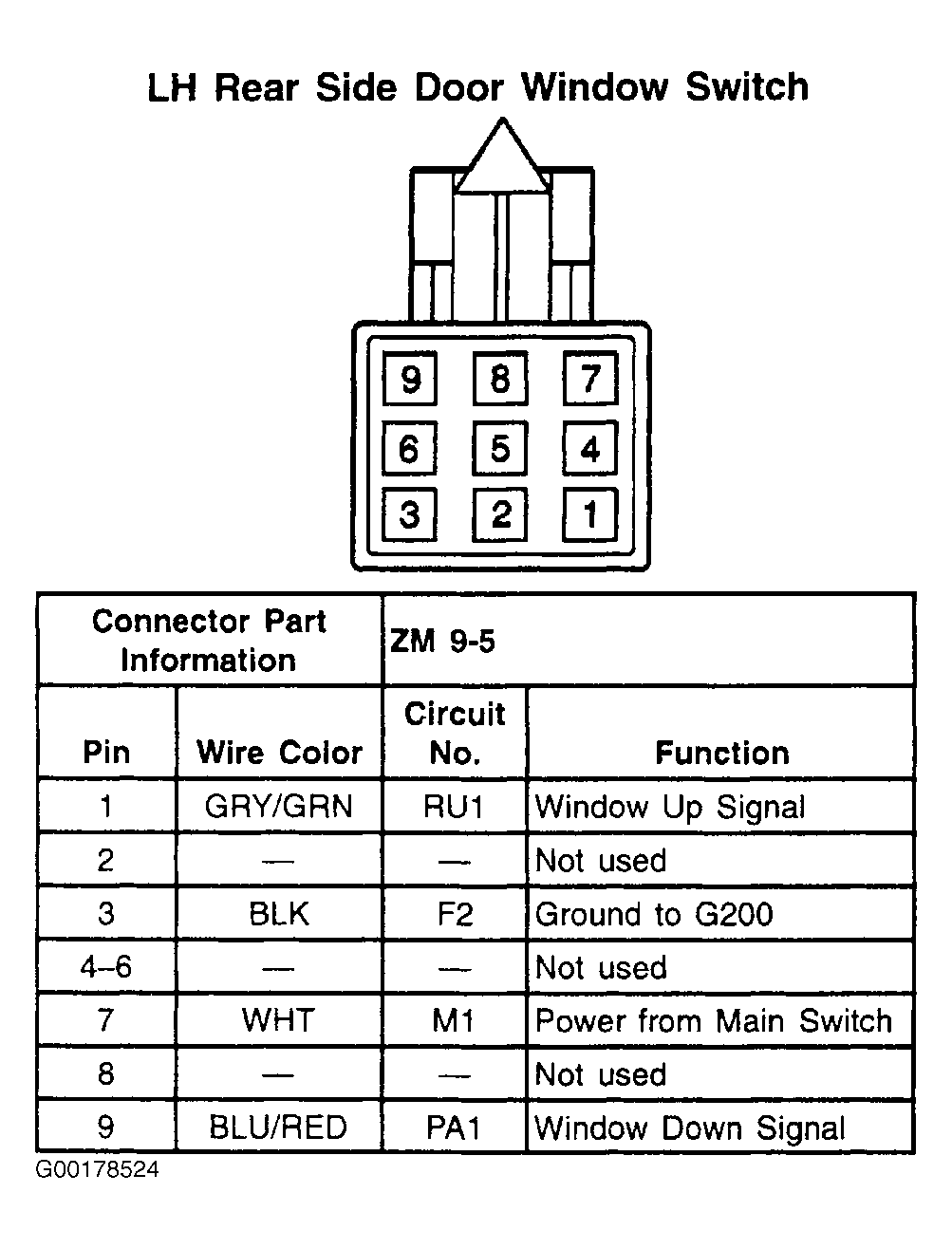

Fig 1: Rear Side Door Window Switch (Left Hand) - 9-Pin Connector
G00178524Courtesy of GENERAL MOTORS CORP.
