Rear Side Door Window Switch (Right Hand)

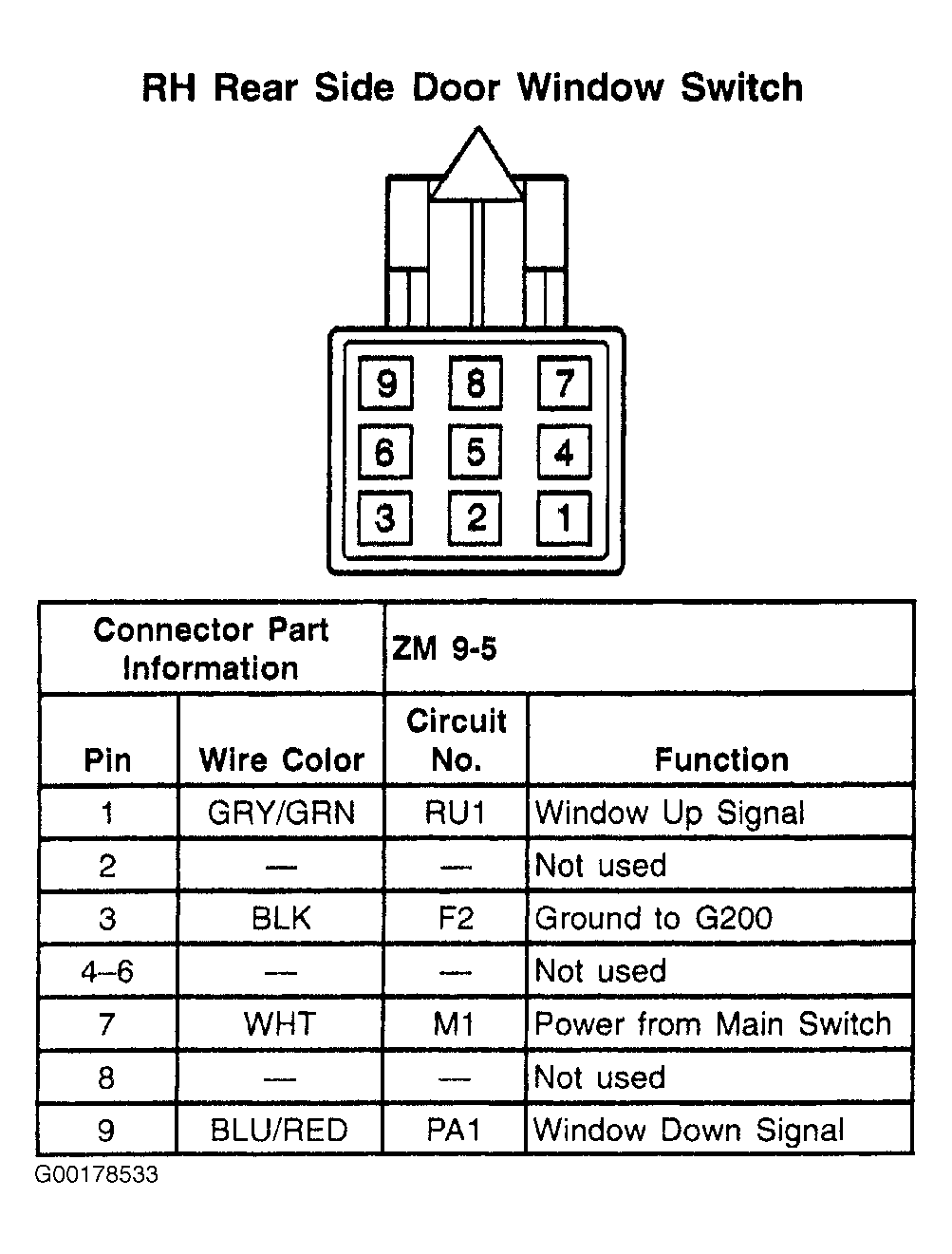

Fig 1: Rear Side Door Window Switch (Right Hand) - 9-Pin Connector
G00178533Courtesy of GENERAL MOTORS CORP.
